Getting Connected

  1. Strip back 1/4" of insulation from each wire that is to be connected to the amplifier. Twist the exposed conductors tightly so there are no stray strands.

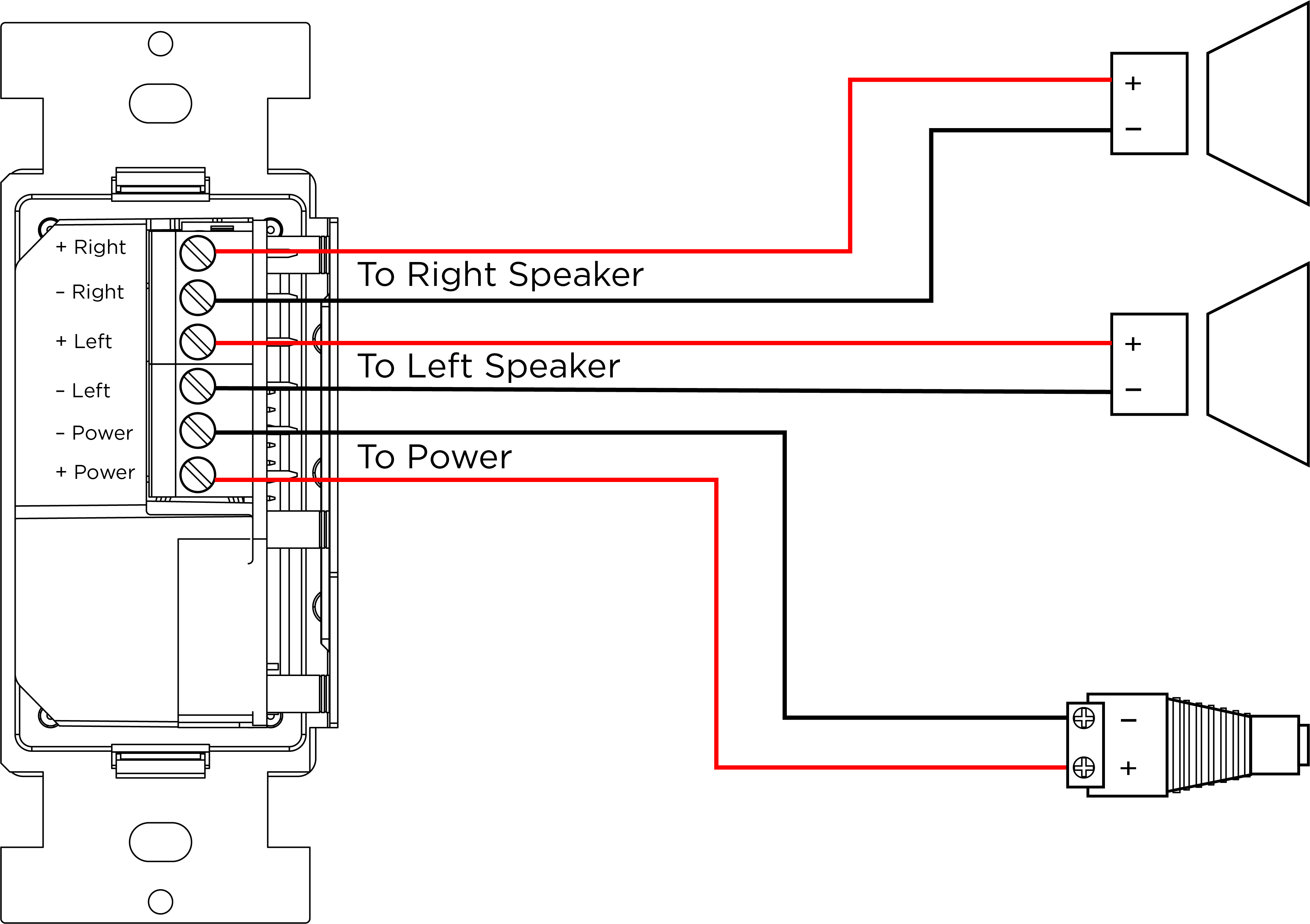

  2. Connect the wires going to each speaker making sure to maintain proper polarity.

Warning: -Do not connect the power supply to AC power while wiring the WAKE Amp.

  1. Once all the conductors are inserted into the connectors, visually inspect each of your connections to ensure that there are no stray strands or exposed wire that could cause a short. Make sure that the connection is tightened down on bare wire and not insulation.

Caution: -.Reversing or swapping the power and speaker connections can damage the amplifier or speakers and is not covered under warranty.

  1. Install the amplifier in the junction box using the provided junction box screws. Be careful not to force the amplifier into the box, as this may cause the connections to become loose.

  2. Place the wall plate over the WAKE Amp, then insert and tighten the short faceplate screws until the cover is tight and flush with the wall.

  3. Use the supplied adapter to connect the amp to the power supply.
