Battery pack anatomy

Front

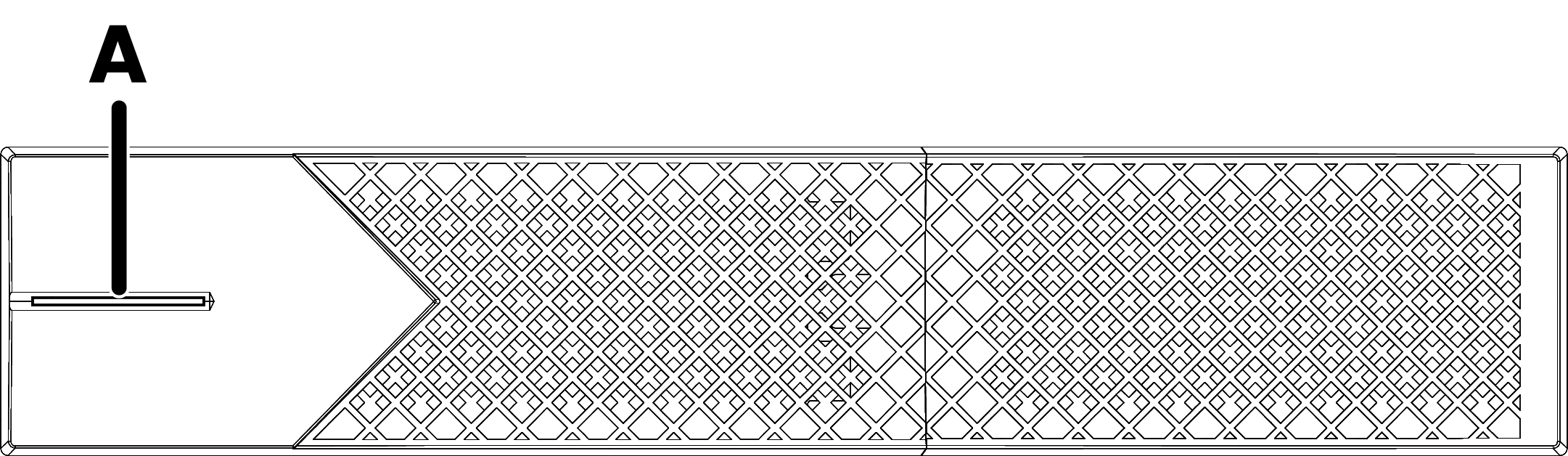

  1. LED — Illuminates after the Extended Battery Pack is connected to the UPS, the breaker on the back is flipped, and the unit detects power.

WB-UPS-EBP-18AH24V back panel

Compatible with the WB-OVRC-OLUPS-1000-1

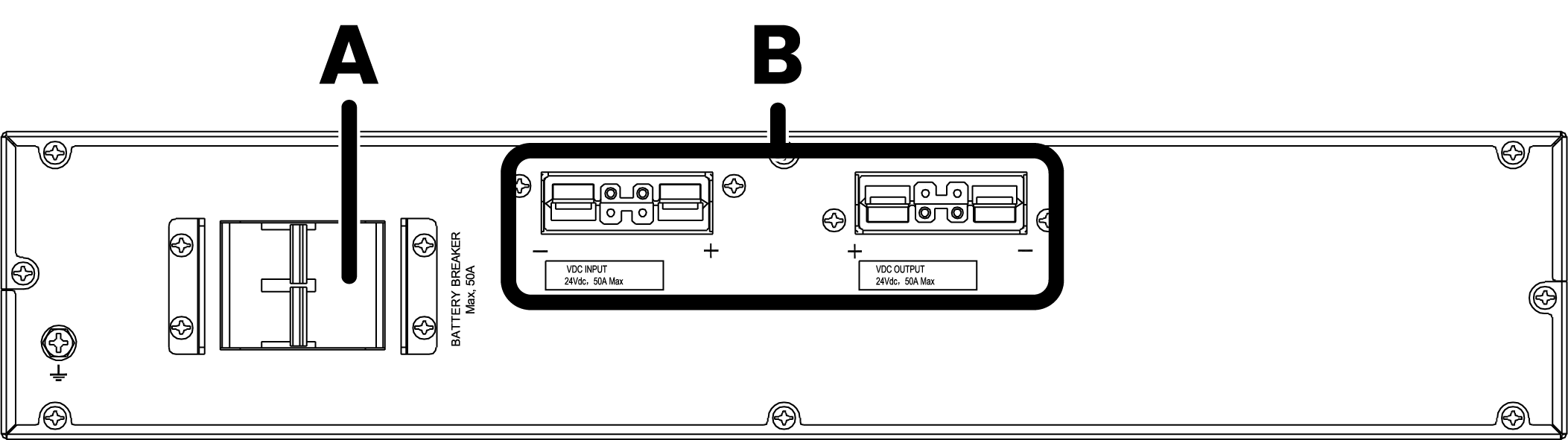

  1. Battery breakers — To cut the power output from the battery pack and protect the UPS from overcurrent conditions.

  2. Battery connector — To connect to a WattBox Double Conversion UPS and daisy-chain additional battery packs.

WB-UPS-EBP-18AH48V back panel

Compatible with the WB-OVRC-OLUPS-1500-1 and WB-OVRC-OLUPS-2000-1

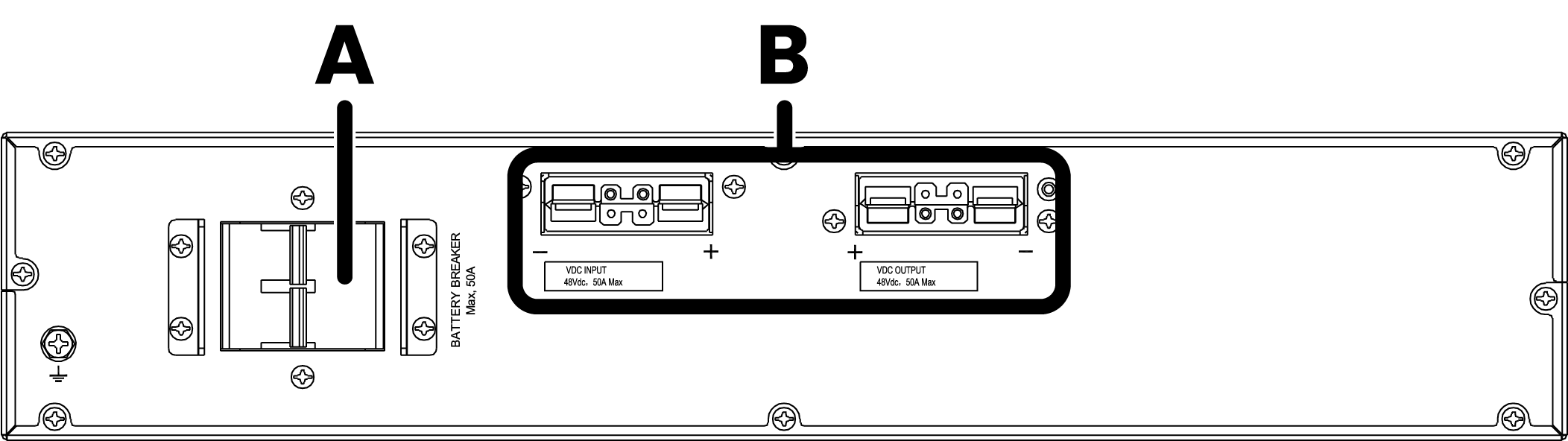

  1. Battery breakers — To cut the power output from the battery pack and protect the UPS from overcurrent conditions.

  2. Battery connector — To connect to a WattBox Double Conversion UPS and daisy-chain additional battery packs.
