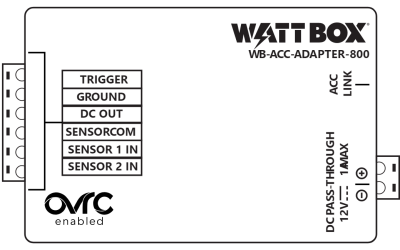

Connections

• Trigger — Contact connection for a trigger accessory.

• Ground — Ground for trigger accessory connection and DC Out.

• DC Out — Passes power to an LED from a power supply connected to the DC pass-through input.

• Sensor COM — Common connection for temperature sensors.

• Sensor 1 IN — Connection for temperature sensor accessory, WB-ACC-TEMP.

• Sensor 2 IN — Connection for temperature sensor accessory, WB-ACC-TEMP.

• ACC Link — TIA-568B port for connecting to the ACC port of an 800 or 820-series PDU. Provides power and data connection to the Accessory Adapter.

  Note: This device is not compatible with the WB-800CH1U-IPVM-8, WB-820-IPVM-8, or WB-800-FP.

• DC Pass-through (optional) — Input for a UL-listed 12Vdc 1A power supply marked PS2 or LPS with a minimum Tma of 50°C to pass power to the DC Out for accessories.

  Caution: The DC Pass-through must be the last connection to the adapter.
