Connecting temperature sensors

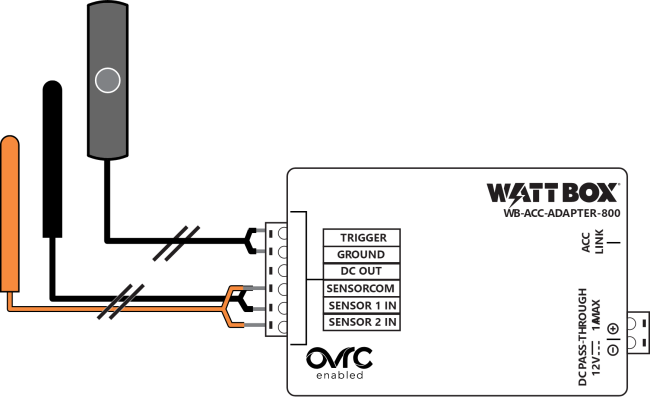

Place the temperature sensors in the desired location, then connect the contacts to the SENSOR COM and SENSOR 1 or SENSOR 2 connections on the adapter using the included Phoenix connector. The contacts can be connected either way (no polarity).

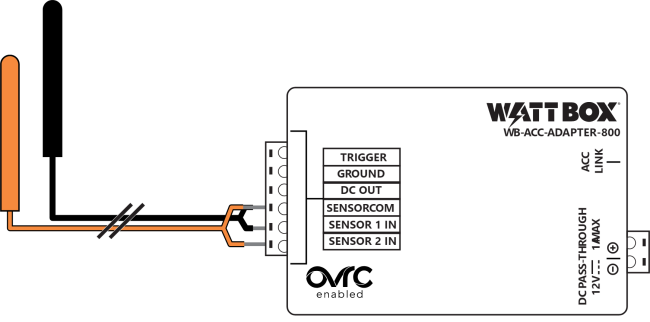

If two temperature sensors are in the system, both must have one contact in the SENSOR COM connection. You cannot add a third temperature sensor.
