Control4 T5 Touchscreen Installation Guide

Introduction

The Control4® T5 Series 8-inch and 11-inch In-Wall Touchscreens offer complete system control in an elegant and compact design. The touchscreens are equipped with full capacitive touchscreen, audio and video intercom (with built-in camera), facial recognition, proximity sensor, and more.

This touchscreen works great in either new construction or retrofit installations. For power and network connectivity, choose from three options:

  • Ethernet with PoE—The Ethernet network connection is provided through the PoE injector. No additional wiring is needed.

  • WiFi with PoE—The internal Wi-Fi communicates with the LAN’s wireless AP, so no additional network wiring is needed. PoE powers the touchscreen.

  • WiFi with AC power supply—The internal Wi-Fi communicats with the LAN’s wireless AP and an optional AC power supply powers the touchscreen.

Note: Note: 802.11b is not recommended for video intercom. We recommend using Wireless-N. See “Specifications” and “Power and Network Installation Options” for more information.

Supported models

C4-T5IW8-WH- T5 TOUCHSCREEN IN-WALL 8" WHITE

C4-T5IW11-WH- T5 TOUCHSCREEN IN-WALL 11" WHITE

C4-T5IW8-MB - T5 TOUCHSCREEN IN-WALL 8" MIDNIGHT BLACK

C4-T5IW10-MB - T5 TOUCHSCREEN IN-WALL 11" MIDNIGHT BLACK

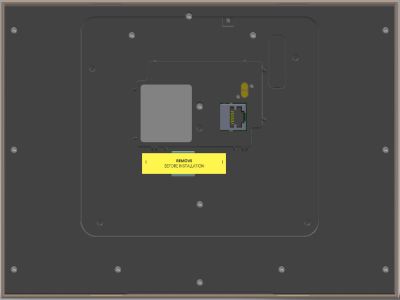

Box contents

  • 8" or 11" T5 In-Wall Touchscreen

  • Wall mounting bracket (to secure touchscreen to junction box)

  • White swappable trim-ring (pre-installed)

  • Two screws (to attach the power box to the wall box)

  • Set screw (to secure the touchscreen to the power box) (pre-installed, to secure touchscreen to mount bracket)

  • Set screw tool (2 mm straight-shaft hex driver)

Accessories available for purchase

Optional power supplies:

  • T5 Touchscreen AC Power Supply Adapter (C4-T5IW-AC)

  • Araknis Networks Multi-gig PoE+ injector (AN-POE-INJ-MG-30W)

In-wall touchscreen wall box kits - new construction:

  • *Plastic (C4-NWB57C-P)

  • Metal (C4-NWB57C-M)

In-wall touchscreen wall box kits - retrofit:

  • *Plastic (C4-RWB57C-P)

  • Metal (C4-RWB57C-M)

Note: *Plastic wall box kits are not compatible with the AC power supply adapter.

For wall box installation details, see:

  • In-Wall Touchscreen Wall Box Installation Guide-New Construction (ctrl4.co/wallbox-new)

  • In-Wall Touchscreen Wall Box Installation Guide-Retrofit (ctrl4.co/wallbox-retro)
