Logging into the SUBAMP User Interface

Connecting to the amplifier through a local network connection

  1. If you have a local network connection, the amplifier requests a DHCP network address and you can access the amplifier's configuration interface through the network.

  2. Find the IP address in your router's DHCP table, for example, 192.168.1.102.

  3. In a web browser, enter the IP address for the amplifier, for example, 192.168.1.102 .

  4. Log in using the default username and password. The default username and password are: triadand triad .

  5. After the first login, you are required to change the default password and choose a new password.

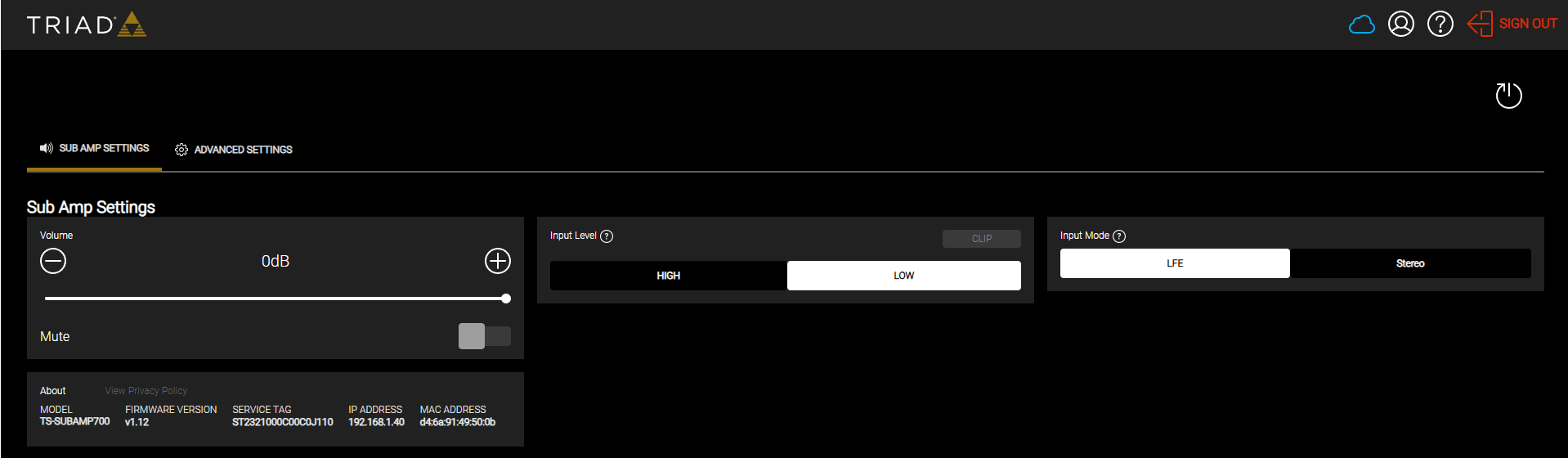

  6. The home screen appears as the example below:

Note: For the TS-SUBAMP-2400, click on Channel 1 or Channel 2 to see this screen.

Connecting to the configuration interface through OvrC

  1. If the amplifier is connected to a local network connection with Internet access, you can access the configuration interface through OvrC.

  2. In OvrC, select the customer and select Devices.

  1. If the amplifier is not listed in the devices, click on Scan.

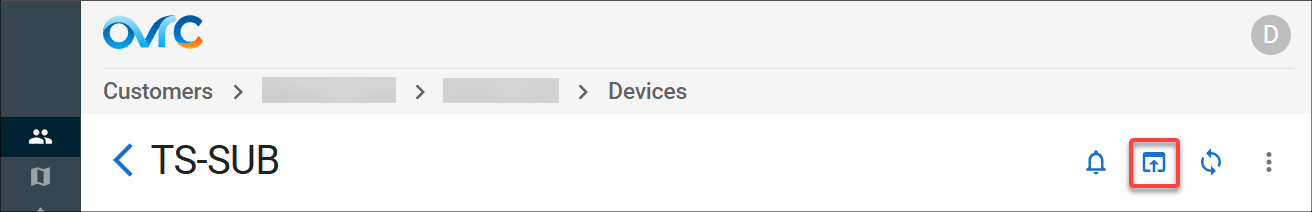

  2. Click on the device name for the amplifier and click the Web Connecticon to connect to the amplifier. Under Web Protocols, click CONNECT.

  3. Log in using the default username and password. The default username and password are: triadand triad.

  4. After the first login, you are required to change the default password and choose a new password.

  5. The home screen appears as the example below:

    6. Note: For the TS-SUBAMP-2400, click on Channel 1 or Channel 2 to see this screen.

Connecting to the Configuration Interface over a Bluetooth connection

  1. Download the Triad Sub TuneIt app from the Google Play Store (http://snp1.co/traidsubamp-androidapp) or Apple App Store (http://snp1.co/triadsubamp-iosapp).

  2. Ensure Bluetooth is enabled on your Android or iOS device and the amplifier is powered on.

  3. Open the app. The app searches for a Triad SUBAMP amplifier.

  4. After the app connects to the amplifier, you can configure the amplifier.

Connecting directly to the Ethernet port of the amplifier

  1. If you do not have a local network connection, you access the configuration interface with a direct Ethernet connection using the default IP Address 192.168.100.118.

  2. Make sure that your PC is using the same subnet (192.168.100.xxx). See the example below:

  1. In a web browser, enter the IP address for the amplifier, 192.168.100.118.

  2. Log in using the default username and password. The default username and password are: triad and triad.

  3. After the first login, you are required to change the default password and choose a new password.

  4. The home screen appears as the example below:

Note: For the TS-SUBAMP-2400, click on Channel 1 or Channel 2 to see this screen.
