Mounting

Ordering a Mount

To order a UL-certified SunBrite outdoor-rated mount, contact your Authorized SunBrite dealer, call SunBrite Customer Care at 866.357.8688, or visit us at www.SunBriteTV.com.

Caution: To avoid blocking the media bay door, use the "X" mounting pattern (shown below) for the 49̎, 55̎, and 65̎ TV models. Consult the mount's instruction manual for specific installation instructions.

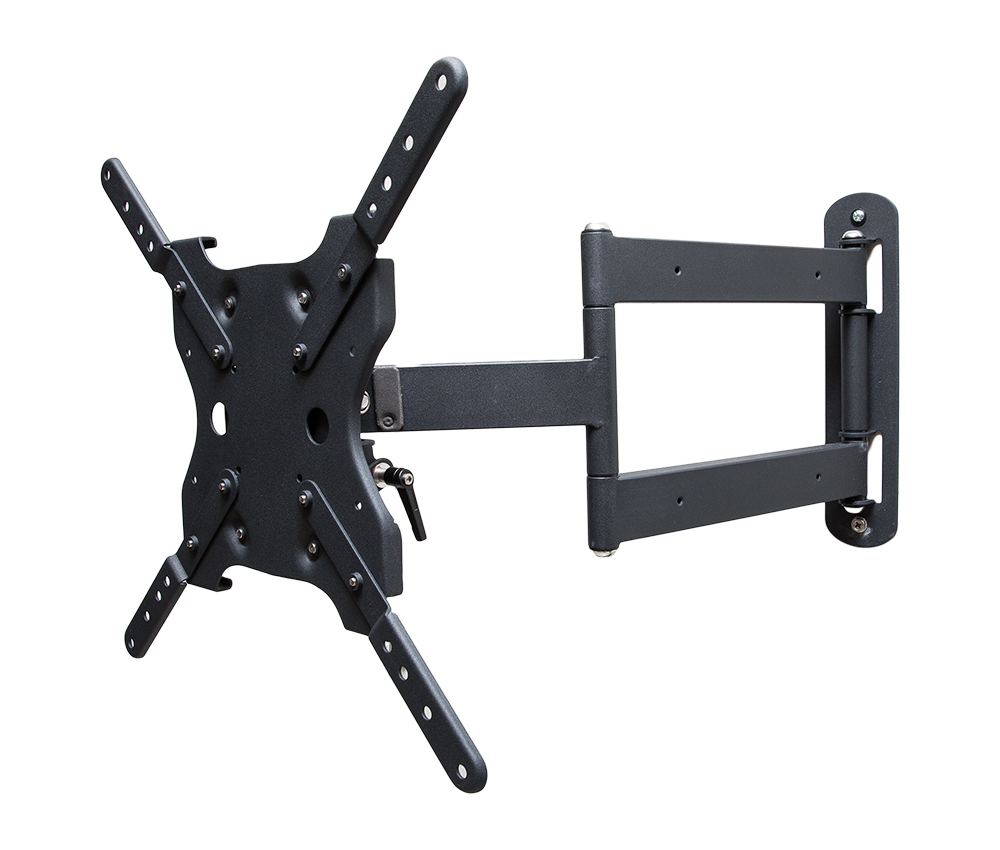

Single Arm Articulating Mount (SB-WM-ART1-M-BL) shown in "X" pattern

Recommended Compatibility Chart

Model

Flat Mount

Tilt Mount

Single arm articulating

Dual arm articulating

49

SB-WM-F-L-BL

SB-WM-T-L-BL

SB-WM-ART1-M-BL

SB-WM-ART2-L-BL

55

SB-WM-F-L-BL

SB-WM-T-L-BL

SB-WM-ART1-M-BL

SB-WM-ART2-L-BL

65

SB-WM-F-XL-BL

SB-WM-T-XL-BL

SB-WM-ART1-M-BL

SB-WM-ART2-XL-BL

75

SB-WM-F-XL-BL

SB-WM-T-XL-BL

n/a

SB-WM-ART2-XL-BL

Compatible SunBrite Mounts

The following mounts will work with your TV, but be sure to verify mount specifications for size and weight compatibility with your TV.

Flat / Flat Tilt Mounts

  • SB-WM-T-XL-BLK

  • SB-WM-F-XL-BLK

  • SB-WM-F-L-BL

  • SB-WM-F-M-BL

  • SB-WM-T-L-BL

  • SB-WM-T-M-BL

Articulating Mounts

  • SB-WM-ART2-XL-BL

  • SB-WM-ART2-L-BL

  • SB-WM-ART1-M-BL

  • SB-WM-ART1-S-BL

Ceiling Mounts

  • SB-CM-T-L-BL

  • SB-CM-T-M-BL

Deck Pole (requires a mount as well)

  • SB-DP46XA

VESA Patterns

The SunBrite TV has a VESA standard pattern of 200 x 200 for the 49̎ model and 400 × 400 for the 55̎, 65̎, and 75̎ models.

  • Use stainless steel, VESA M8, 20mm long screws for mounting the TV.

  • Torque mounting screws to 10 in-lb / 1 Nm (12kgf.cm).

Caution: Your TV accepts a maximum mounting screw length of 20 mm. If using screws longer than 20 mm, add washers to the screws until the mount is fastened firmly to the TV.

Caution: To prevent water damage, do not install in vertical (portrait) orientation or upside down as speaker ports are located on the bottom panel.

Caution: To maximize the life of your TV, do not mount it where its rear panel is subject to direct sunlight.

On a wall

Do not mount your SunBrite directly to a wall. Use a SunBrite all-weather TV mount for safety and security.

On a stand

Your TV does not come with a stand, nor do we recommend using one.

From a ceiling

Use SunBrite All-Weather Ceiling Mounts for best results.
