Media Bay

All TV connections are made in the media bay, which is located on the rear of the television. Port locations are shown in the figures below.

The media bay is protected by a watertight cover that is fastened by three or four thumb screws (depending on model). Be sure to leave a drip loop in the cables as they exit the media bay. Torque media bay thumbscrews to 4kgf.cm (add 3.5 in-lb and 0.4 Nm).

Caution: Before mounting the TV outdoors, use the thumbscrews to fasten the media bay cover and ensure that it is watertight to prevent serious water damage to the TV.

Note: All installation must be conducted by trained and qualified technicians. We are not responsible for any personal injury or damage resulting from an improperly sealed media bay cover.

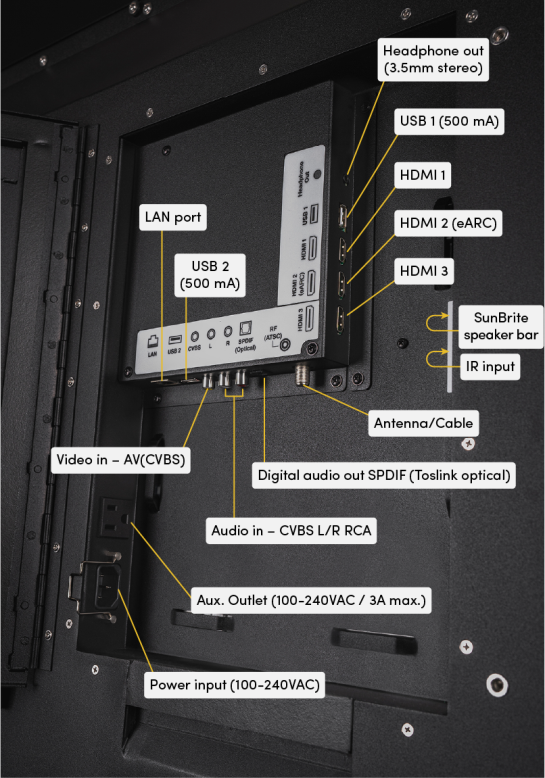

Media bay ports

In 49" and 55" model TVs, the IR control and speaker bar inputs are located on the right side panel of the media bay (see figure below).

In 65" and 75" model TVs, the IR control and speaker bar inputs are located on the left side panel of the media bay, below the power input port.

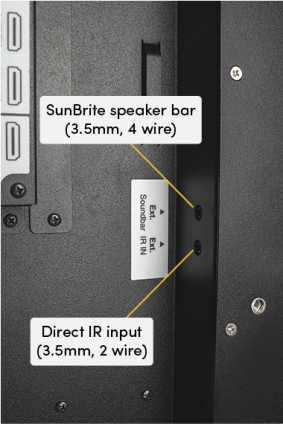

IR control and speaker bar ports
