UPS Settings

These settings appear if you have an OvrC-enabled UPS connected to the UPS Link of an IP-enabled WattBox.

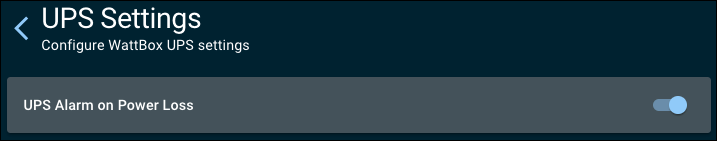

UPS Alarm on Power Loss

Toggle on for the UPS to emit an alarm when you lose power.

Load shedding configuration

Use the drop-down next to each outlet to set the battery percentage that the UPS turns the outlet off.

Note: Load shedding does not work for outlets configured to Reset Only.

Click Save to apply changes.

Voltage Range Settings (800 series OvrC-enabled UPS only)

Select the type of Voltage Range you expect at the installed location. Options include:

  • Normal Range — For locations with consistent and reliable input voltage and frequency.

  • Wide Range — For locations where the input voltage or frequency may fluctuate.

  • Generator Range — For optimal performance in generator and off-grid power environments.

Note: This feature is not available for International WattBox PDUs. Compatible with the WB-OVRC-UPS-2000-1.
