Routines

Routines are specific to Control4  X4. They are configurable by the end user through the Control4 mobile app. Learn more about X4 at ctrl4.co/resources-x4. Dealers can add, edit, modify, enable, disable, or delete Routines using OvrC.

Click a Routine name to modify, test, or delete it. You can also use the overflow icon to modify or delete Routines.

How to add a new Routine

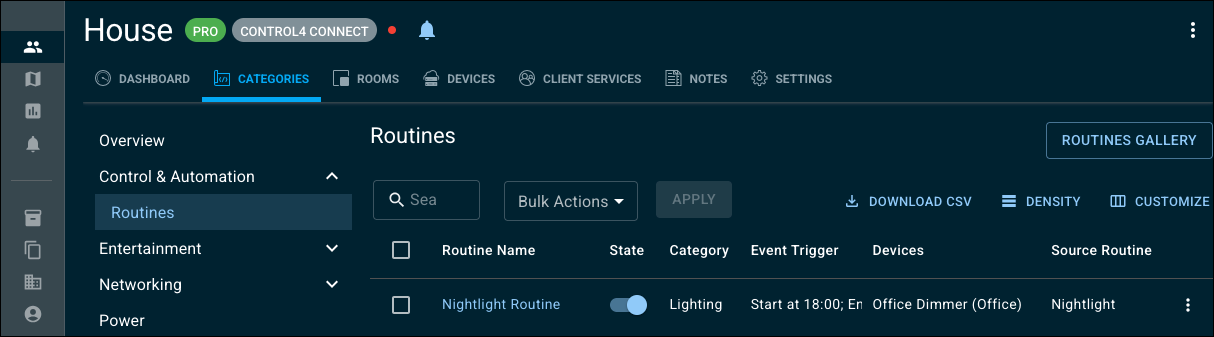

  1. In the Customer's Location, go to the Categories tab > Control & Automation > Routines.

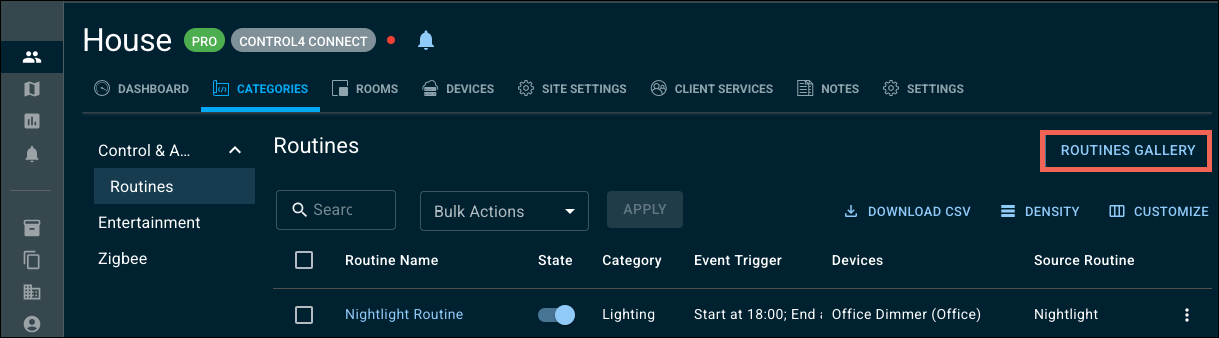

  2. Click the Routines Gallery button.

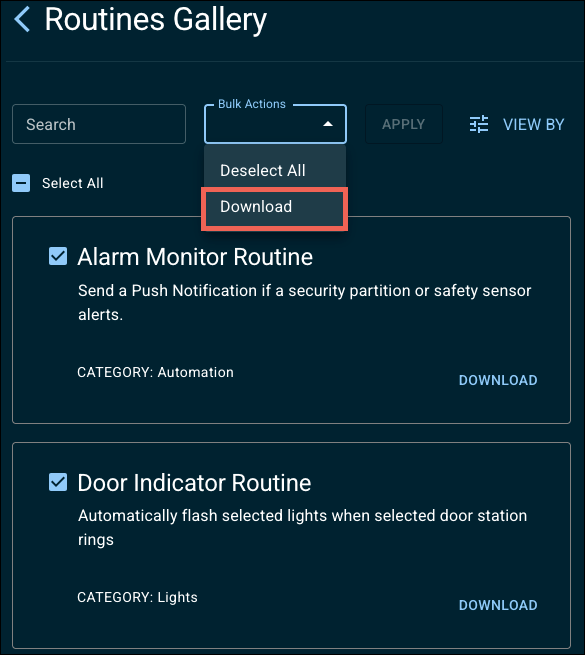

  3. Click the Download button on the Routine you want to add. To add multiple, select each Routine, then use the Bulk Actions drop-down to Download.

  4. Follow the instructions on the page for each Routine you download.

  5. Test the Routine using the Run Actions buttons.

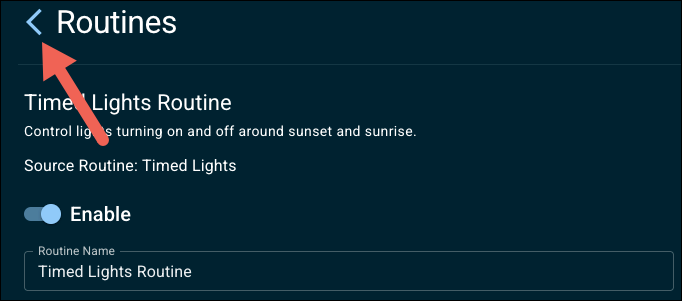

  6. Use the navigation button at the top to return to the Routines page.

Note: If the Routine wasn't entirely configured the Even Trigger displays a warning. These Routines will not run until the configuration is complete.
