B-900 MoIP devices

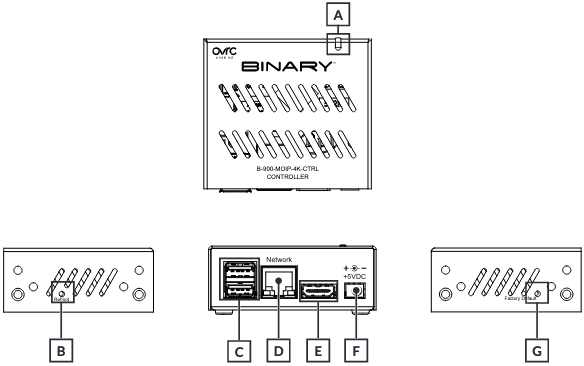

MoIP Controller (B-900-MoIP-4K-CTRL)

Status LED - Solid during the startup process. Blinks during normal operation.
Reboot button - Use a pin to press the recessed button to restart the controller.
USB ports - Not used for the MoIP system.
Network/LAN port - Connect to the MoIP switch to provide access to MoIP transmitters and receivers.
HDMI port - Not used for the MoIP system.
5VDC 1A power connection - Connect the provided power supply.
Factory Default button - Use a pin to press the recessed button 3 times within 10 seconds to restore factory settings.

Power indicator - On: Powered on | Blinking: Starting up | Off: Powered off.
System status light - On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.
Network port - Provides access to the network and Power-over-Ethernet (PoE).
DIP switches - Switch 1: IR receiver on/off | Switch 2: DTE/DCE.
3.5 mm Input - Analog audio embedding to replace HDMI audio.
L/R Audio Out - RCA analog audio de-embedding of 2-channel PCM audio.
RS-232 - RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout.
HDMI In/Out - HDMI source input and HDMI loop output for local display.
IR Receiver - 3.5 mm mini mono/stereo for external receivers.
IR Flasher - 3.5 mm mini mono output to IR emitter.
Factory Reset - Press and hold for 10 seconds to restore to factory settings.
12V 2A power connection - Optional 12VDC 2A locking connection for external power supply (not included).

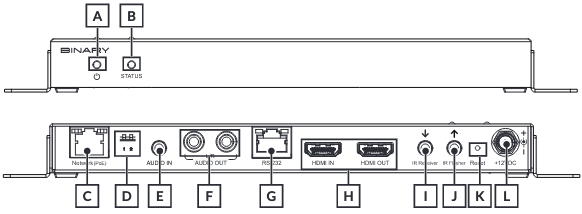

Power indicator - On: powered on | Blinking: starting up | Off: powered off.
System status light - On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.
DTS LED - Blue = DTS Surround; Red = DTS HD; Purple =DTS HD Master Audio.
Dolby LED - Blue = Dolby Digital; Red = Dolby Digital Plus; Purple = Dolby True HD.
Network port - Provides access to the network and Power-over-Ethernet (POE).
SPDIF Out - For future use.
L/R Audio Out - RCA analog output for downmixed and de-embedded 2-channel PCM audio with a bitstream up to the DSP’s max capability.
3.5 mm Input— Analog audio embedding with the option to replace HDMI audio.
RS-232 - RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout.
HDMI In/Out - HDMI source input and HDMI loop output for local display.
IR Receiver - 3.5 mm mini mono/stereo for external receivers.
IR Flasher - 3.5 mm mini mono output to IR emitter.
Factory Reset - Press and hold for 10 seconds to restore to factory settings.
12V 2A power connection - Optional 12VDC 2A locking connection for external power supply (not included).

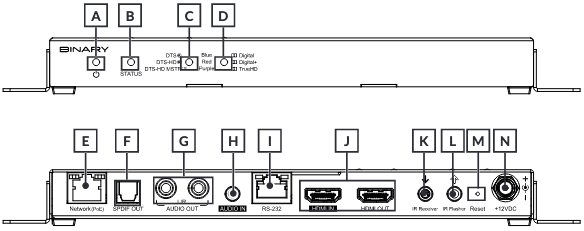

Power indicator - On: Powered on | Blinking: Starting up | Off: Powered off.
System Status light - On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.
Network port - Provides access to the network and Power-over-Ethernet (PoE).
L/R Audio In - RCA analog audio input.
Ground screw (optional) - For ground-related noise issues, connect the ground screw terminal to a local AC ground.
Factory Reset - Remove power. Press and hold the reset button. Reapply power and continue to hold the reset button until the Status LED begins to flash (approximately 4 seconds), then release the button.
12V 2A power connection - Optional 12VDC 2A locking connection for external power supply (not included).

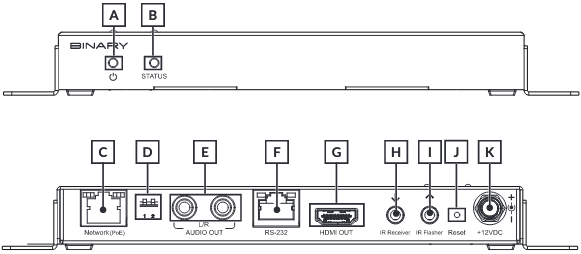

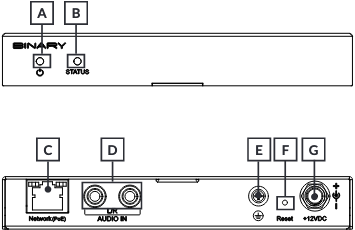

Power indicator - On: Powered on | Blinking: Starting up | Off: Powered off.
System Status light - On: Connected to the network and subscribed to a transmitter stream | Blinking: Connected to the network and not subscribed to a transmitter stream.
Network port - Provides access to the network and Power-over-Ethernet (PoE).
DIP switches - Switch 1: IR receiver On/Off | Switch 2: DTE/DCE.
L/R Audio Out - RCA analog 2-channel audio.
RS-232 - RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout.
HDMI OUT - HDMI output for display.
IR Receiver - 3.5 mm mini mono/stereo for external receivers.
IR Flasher - 3.5 mm mini mono output to IR emitter/flasher.
Factory Reset - Press and hold for 10 seconds to restore to factory settings.
12V 2A power connection - Optional 12VDC 2A locking connection for external power supply (not included).

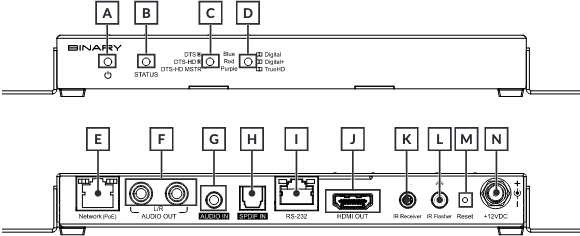

Power Indicator - On: Powered on | Blinking: Starting up | Off: Powered off.
System Status Light - On: Connected to the network and subscribed to a transmitter stream | Blinking: Connected to the network and not subscribed to a transmitter stream.
DTS LED - Blue = DTS Surround; Red = DTS HD; Purple =DTS HD Master Audio.
Dolby LED - Blue = Dolby Digital; Red = Dolby Digital Plus; Purple = Dolby True HD.
Network Port - Provides access to the network and Power-over-Ethernet (POE).
L/R Audio Out - RCA analog 2-channel audio output for audio return.
Audio In - 3.5 mm input for embedding audio to replace HDMI audio.
SPDIF In - Digital audio output for audio return.
RS-232 - RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout.
HDMI OUT - HDMI output for display.
IR Receiver - 3.5 mm mini mono/stereo for external receivers.
IR Flasher - 3.5 mm mini mono output to IR emitter/flasher.
Factory Reset - Press and hold for 10 seconds to restore to factory settings.
12V 2A Power Connection - Optional 12VDC 2A locking connection for external power supply (not included).

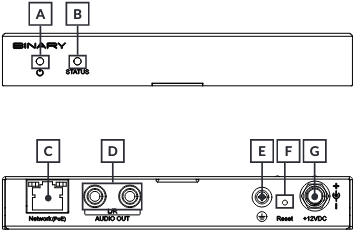

Power Indicator - On: Powered on | Blinking: Starting up | Off: Powered off.
System Status Light -On: Connected to the network and subscribed to a transmitter stream | Blinking: Connected to the network and not subscribed to a transmitter stream.
Network Port - Provides access to the network and Power-over-Ethernet (POE).
L/R Audio Out - RCA analog audio output.
Ground screw (optional) - For ground-related noise issues, connect the ground screw terminal to a local AC ground.
Factory Reset - Remove power. Press and hold the reset button. Reapply power and continue to hold the reset button until the Status LED begins to flash (approximately 4 seconds), then release the button.
12V 2A Power Connection - Optional 12VDC 2A locking connection for external power supply (not included).
