Configuring MoIP Video Transmitters in the Local UI

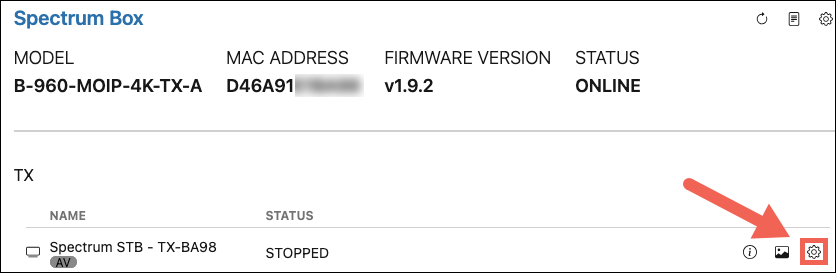

Click the Settings button next to the device in the Details tab to configure the device-specific settings.

Pro Tip: Disable power-saving settings on connected devices to help maintain the video stream.

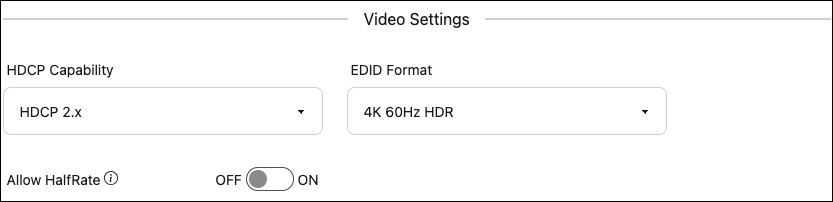

Video Settings

These settings are only available on B-960 transmitters (B-960-4K-TX-A ) and transceivers (B-960-MOIP-4K-TR). Configure the HDCP Capability and video EDID Format (Extended Display Identification Data) of the source.

Note: TX-A devices have an Allow HalfRate toggle. If you're using MultiView, turn this on to scale the video resolution down to 4k30 during MultiView sessions so the stream can be used by multiple receivers.

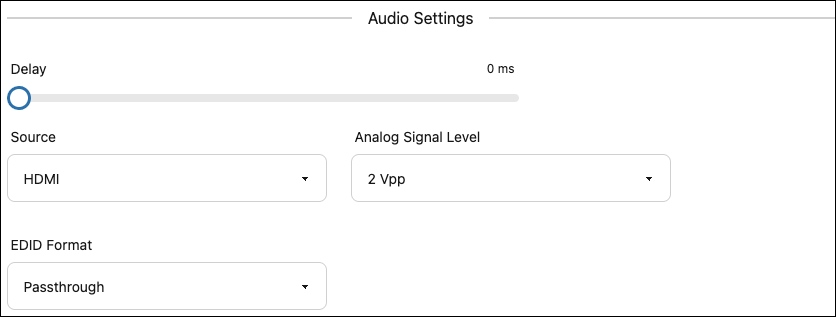

Audio Settings

The TX provides an audio Delay slider to ensure audio syncs with the video stream. Downmixing transmitters (B-900-MoIP-4K-TX-2AC, B-960-MOIP-4K-TX-A ) have a Source drop-down to set the input type being used. If necessary, change the Analog Signal Level drop-down from 2 Vpp to 1 Vpp.

The EDID Format can be fixed to a 2-channel stereo, 5.1, or 7.1 multichannel. The default setting is Passthrough, which allows all multichannel high audio resolution formats including DTS-X, Dolby ATMOS, DTS HD Master Audio, and Dolby True HD.

Caution: Setting an audio EDID on a transmitter forces the audio resolution to all receivers in the system. Consider using a downmixing transmitter (B-900-MoIP-4K-TX-2AC or B-960 transmitters) for systems that require simultaneous delivery to zones capable of multichannel audio as well as 2-channel only.

Pro Tip: A downmixing receiver provides the best experience.

How to select an audio EDID

  • Full - 7.1 DD ATMOS, DTS-X - Allows any audio format to pass through to the endpoint.  This includes object-oriented formats like Dolby Atmos and DTS X for the best available surround sound performance. When using this mode, and encountering a Dolby Atmos or DTS:X signal, there will be no output from the 2-channel analog output.

  • Passthrough - 7.1 TrHD/HDMSTR - Allows any format that is capable of being decoded by the built-in downmixer. Use this mode when using downmixing endpoints to ensure you always get output from the analog outputs. This mode does not support Dolby Atmos or DTS-X .

  • 5.1 - 5.1 DD/DTS - Forces the stream to only support 5.1 channel surround formats.

  • 2-channel – Use this mode when the endpoints are only cable of 2-channel PCM audio.

IR Settings

Turn on Enable IR Power if you need to supply power to a connected IR emitter.

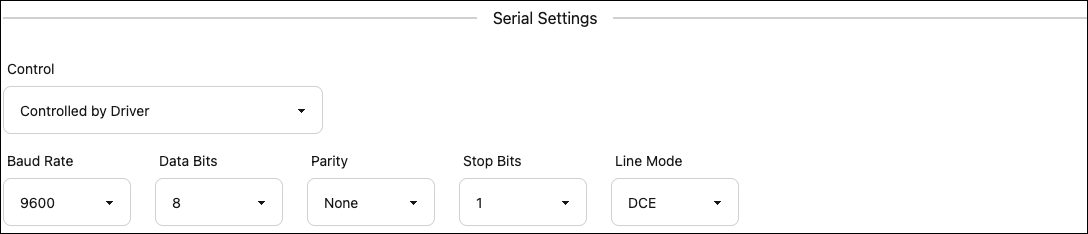

Serial Settings

If the device is being used with a control system, toggle Controlled by Driver on.

Configurable serial settings include:

  • Baud Rate

  • Data

  • Parity

  • Stop bit

  • Line Mode
