Configuring MoIP Video Receivers in the Local UI

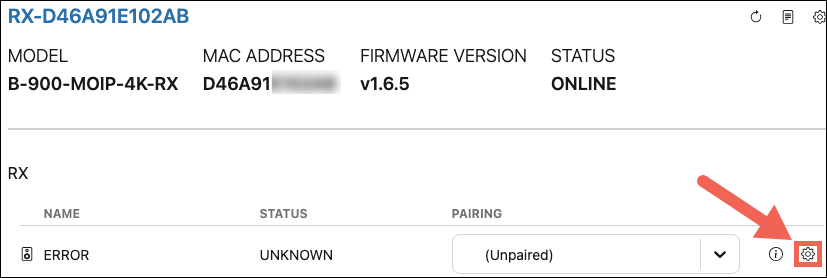

Click the Settings button next to the device in the Details tab to configure the device-specific settings.

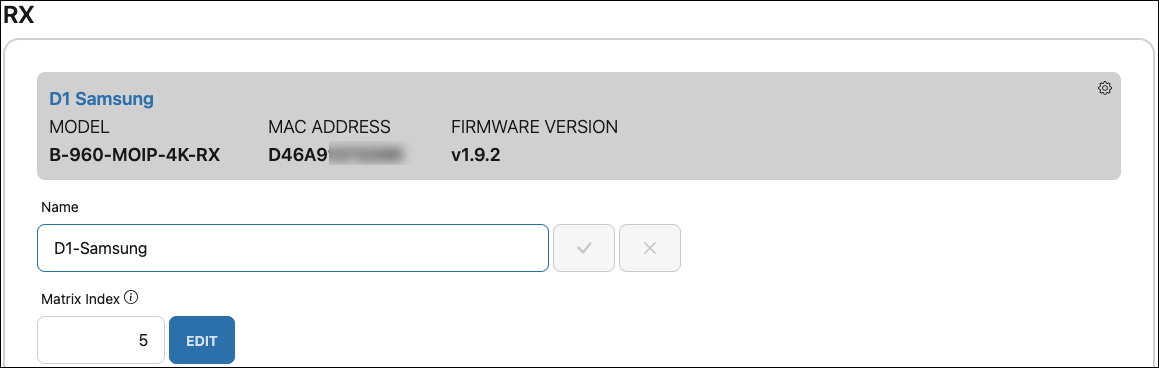

At the top of the page, you can edit the Name and the Matrix Index value used by control systems to identify the device.

Video Settings

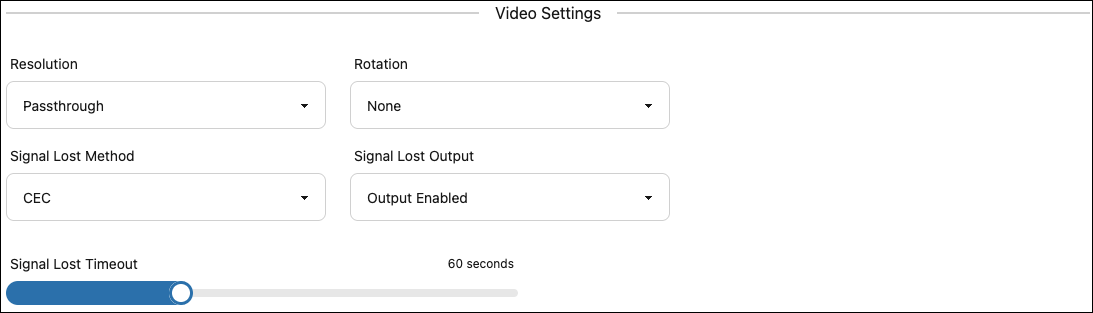

Configure the Max Video Resolution for the to RX to support. Select Passthrough for displays that support 4K HDR to allow the HDR metadata to pass, resulting in 4K HDR 30Hz. If needed, set a Rotation for the video signal. 180 degrees is the most common for the top row of video walls where TVs are hung upside down, so the display’s bezel logos are right-side up.

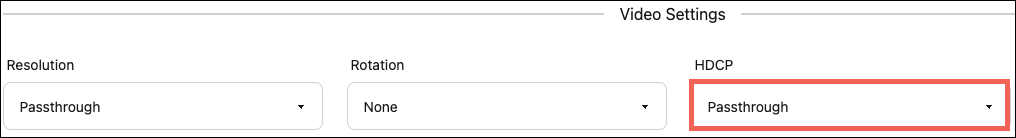

Note: B-900 receivers have an HDCP drop-down for Passthrough, 1.4, or 2.2.

Use the Signal Lost Method drop-down to select the signal of the device to use when determining if the signal is lost. If you want the output to turn off when it detects signal loss, change Signal Lost Output to No Output. Use the Signal Lost Timeout slider to adjust the amount of time (in seconds) the device waits before it considers the signal to be lost. The default value is 60.

Adding custom images

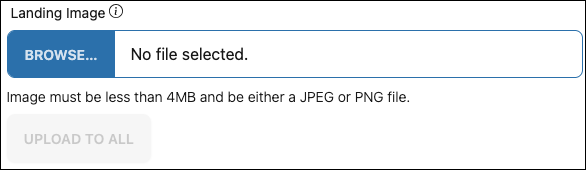

To replace the default Binary landing page, click the Landing Image Browse button to select an image, then click Upload to All. The maximum image size is 640 × 480 px.

B-960 Receivers have the ability to add a logo in the corner of displays.

Note: This feature is not available on transceivers or B-900 devices.

To add a logo:

  1. Click the Logo Image Browse button to select an image, then click Upload to All.

  2. Click the Display Logo toggle.

  3. Select the corner of the display for the image to appear in.

  4. Enter the number of pixels from the edge of the screen for the logo.

  5. Click Apply to All.

Audio Settings

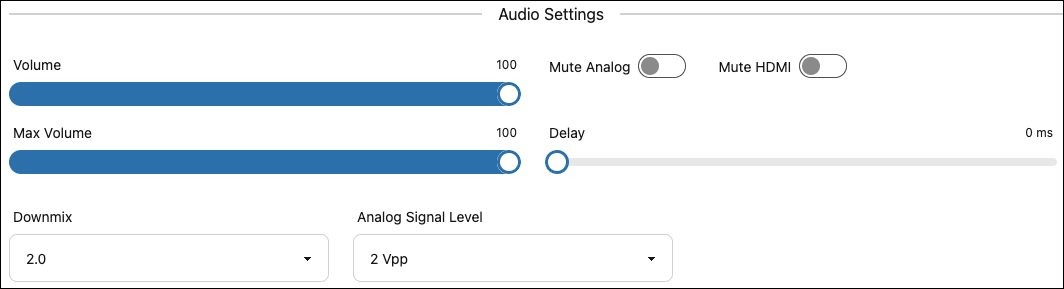

Adjust the Volume and set a Max Volume to avoid damaging audio equipment. There are also toggles to Mute the Analog or HDMI outputs.

Downmixing receivers (B-900-MoIP-4K-RX-2AC and B-960-MOIP-4K-TR), have a Downmix drop-down (Auto, 2CH, or Passthrough) and add a Delay slider (up to 250 milliseconds). The Audio Signal Level can be set to 1 or 2 Vpp.

Configuring Audio Return Channel

Downmixing receivers support Audio Return Channel (ARC) and can pass this audio to other MoIP receivers. When enabled, the transmitter creates a new Audio Return TX.

To configure ARC:

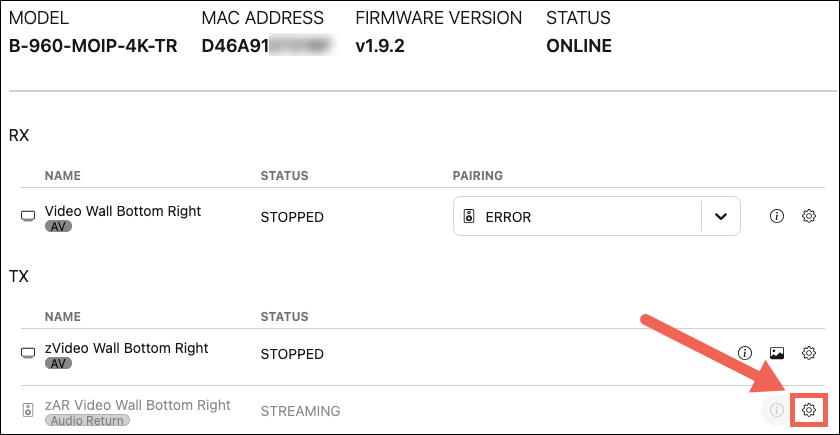

  1. On the Details page, click the Settings icon next to the Audio Return TX in the downmixing receiver's tile.

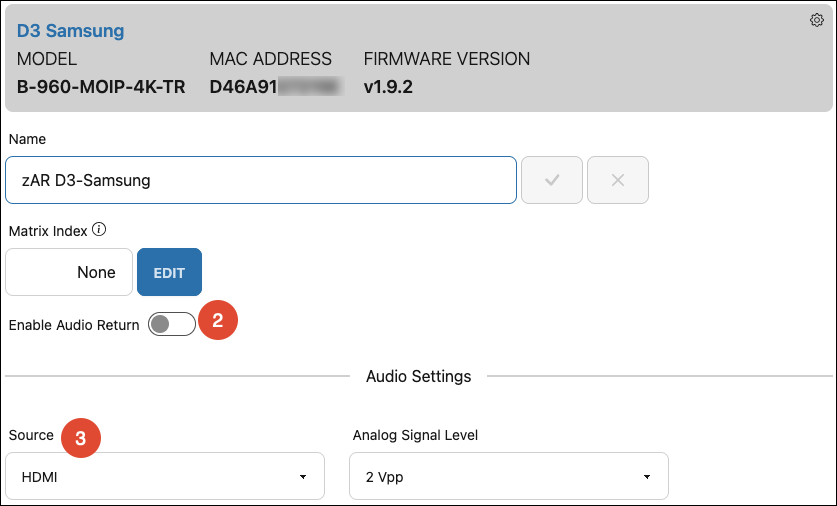

  2. Toggle Audio Return on.

  3. Set the Source.

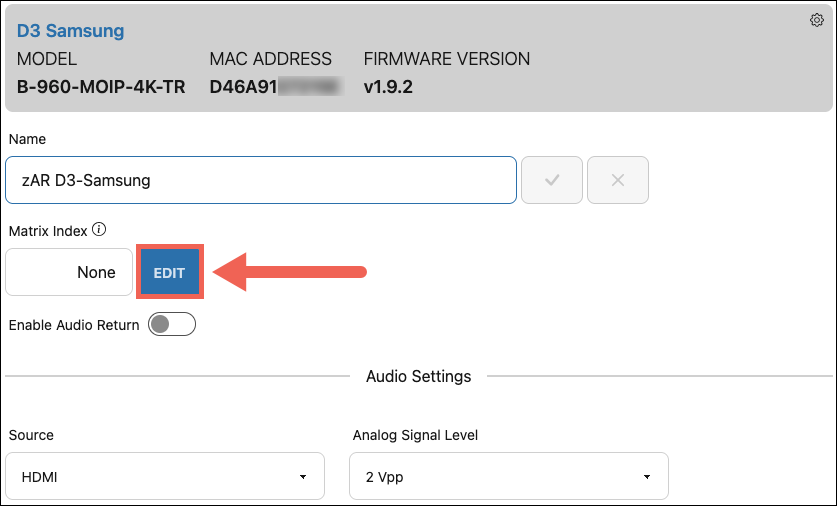

  4. Click the Edit button for the Matrix Index field. This takes you to the Matrix Indexes page.

    Note: You must enter an ID for a control system to select the Audio Return TX.

  5. In the TX column, find your Audio Return TX and enter a number.

IR Settings

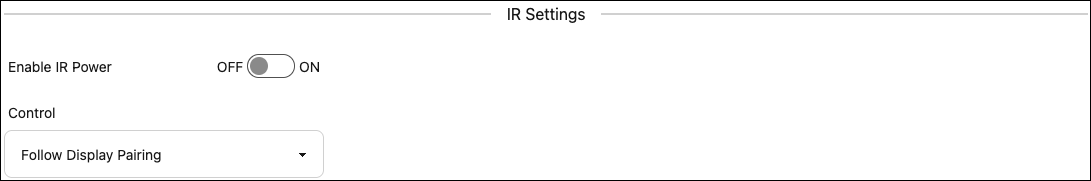

Enable IR Power if you need the MoIP receiver to power the connected IR receiver. Use the Control drop-down to tell the device to follow the Display Pairing or lock it to a specific source.

Graphical user interface, application Description automatically generated

Serial Settings

If the device is being used with a control system, toggle Controlled by Driver on.

Configurable serial settings include:

  • Baud Rate

  • Data

  • Parity

  • Stop bit

  • Line Mode

USB Settings for B-960 devices

Use the Control drop-down to tell the device to follow the Display Pairing or lock it to a specific source.
