B-960 MoIP devices

Note: B-960 and B-900 devices cannot pass video to each other, but B-960 devices are compatible with the audio-only B-900-MOIP-AUDIO-RX and B-900-MOIP-AUDIO-TX devices.

Caution: B-960 configurations must use an Araknis 920 switch. Read MoIP configuration for AN-920 Edge switches for more information.

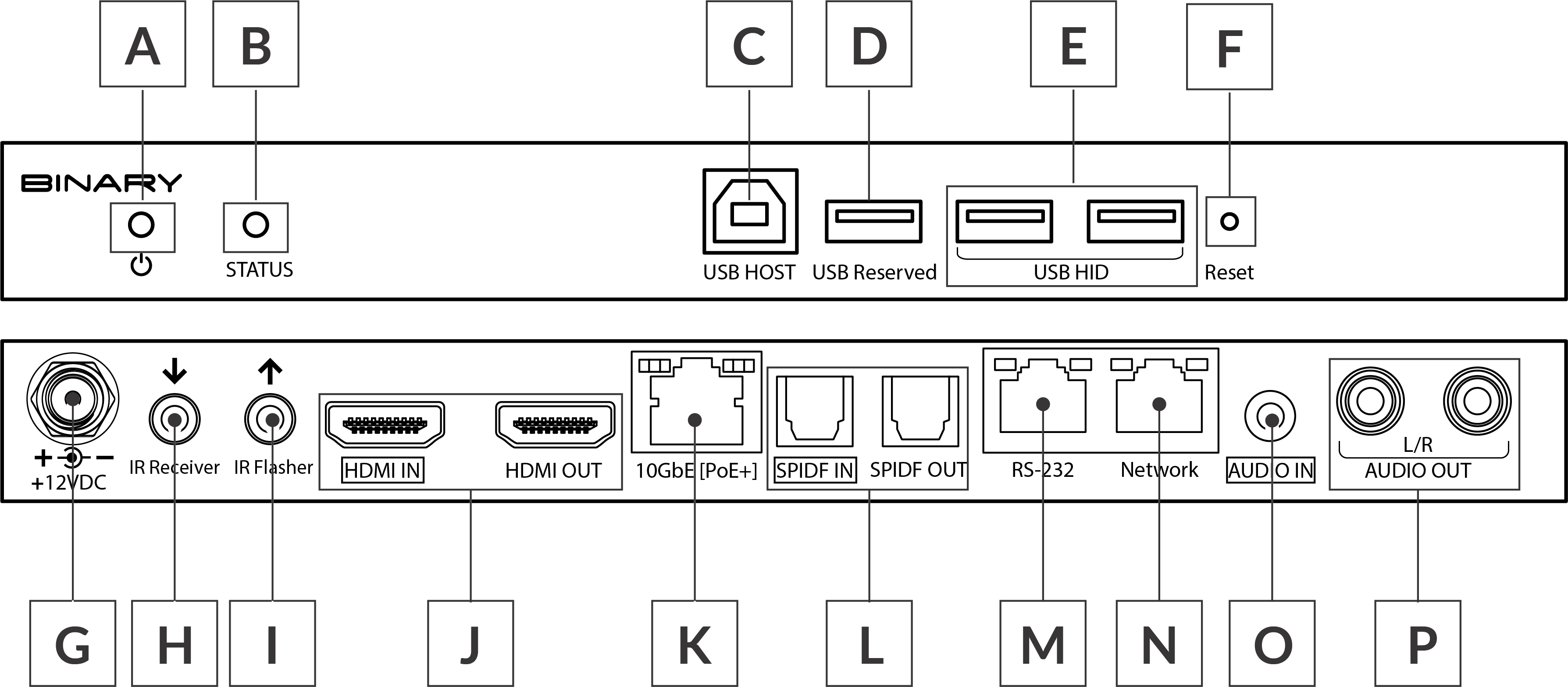

B-960 MoIP Transceiver (B-960-MOIP-4K-TR)

B-960 MoIP Transceivers can be used as a transmitter, receiver, or act as a transmitter and receiver simultaneously. They support Ryff, eARC/ARC, Multi-channel audio transmission with HDMI embedding and 2 channel de-embedding.

  1. Power indicator— On: Powered on | Blinking: Starting up | Off: Powered off.

  2. System status light— On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.

  3. USB Host — Input for PCs.

  4. USB Reserved — For future use.

  5. USB HID — Output for Human Interface Devices (HID), such as a mouse or keyboard.

  6. Reset — Press and hold for 10 seconds to restore to factory settings.

  7. 12V 2A power connection— Optional 12VDC 3A locking connection for external power supply (not included).

  8. IR Receiver— 3.5 mm mini mono/stereo for external receivers.

  9. IR Flasher — 3.5 mm mini mono output to IR emitter.

  10. HDMI In/Out — HDMI source input and output.

  11. 10GbE Network port— Provides access to the network and Power-over-Ethernet (PoE).

    Caution: B-960 configurations must use an Araknis 920 switch. Read MoIP configuration for AN-920 Edge switches for more information.

  12. SPDIF In/Out — SPDIF input and output.

  13. RS-232— RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout

  14. Network — Provides network access to a connected deivce.

  15. 3.5 mm Input— Analog audio embedding to replace HDMI audio.

  16. L/R Audio Out— RCA analog audio de-embedding of 2-channel PCM audio.

B-960 Downmixing Transmitter (B-960-4K-TX-A)

  1. Power indicator — On: Powered on | Blinking: Starting up | Off: Powered off.

  2. System status light — On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.

  3. DTS LED — Blue = DTS Surround; Red = DTS HD; Purple =DTS HD Master Audio.

  4. Dolby LED — Blue = Dolby Digital; Red = Dolby Digital Plus and Atmos; Purple = Dolby True HD Atmos; None = Dolby MAT (PCM) Atmos.

    Note: Dolby MAT (PCM) Atmos is not downmixed.

  5. USB Host — Input for PCs.

  6. USB Reserved — For future use.

  7. USB HID — Output for Human Interface Devices (HID), such as a mouse or keyboard.

  8. Reset — Press and hold for 10 seconds to restore to factory settings.

  9. 12V 2A power connection — Optional 12VDC 3A locking connection for external power supply (not included).

  10. IR Receiver — 3.5 mm mini mono/stereo for external receivers.

  11. IR Flasher — 3.5 mm mini mono output to IR emitter.

  12. HDMI In/Out — HDMI source input and output.

  13. 10GbE Network port— Provides access to the network and Power-over-Ethernet (PoE).

    Caution: B-960 configurations must use an Araknis 920 switch. Read MoIP configuration for AN-920 Edge switches for more information.

  14. SPDIF Out — SPDIF output.

  15. RS-232 — RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout

  16. Network — Provides network access to a connected device.

  17. 3.5 mm Input— Analog audio embedding with the option to replace HDMI audio.

  18. L/R Audio Out — RCA analog audio de-embedding of 2-channel PCM audio.

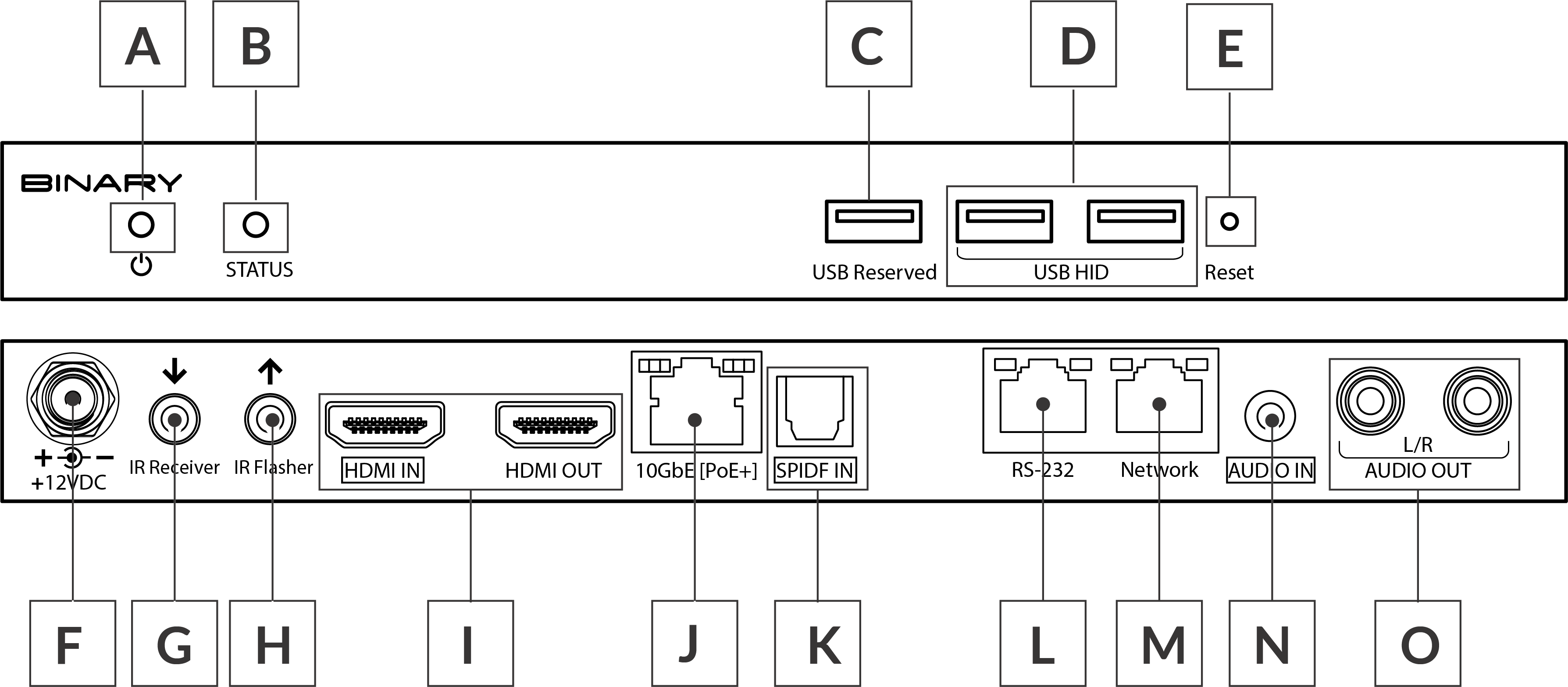

B-960 MoIP Receiver (B-960-4K-RX)

  1. Power indicator — On: Powered on | Blinking: Starting up | Off: Powered off.

  2. System status light — On: Connected to network and detecting a source | Off: Does not detect a network connection| Blinking: Detects a network connection but not a source.

  3. USB Reserved — For future use.

  4. USB HID — Output for Human Interface Devices (HID), such as a mouse or keyboard.

  5. Reset — Press and hold for 10 seconds to restore to factory settings.

  6. 12V 2A power connection — Optional 12VDC 3A locking connection for external power supply (not included).

  7. IR Receiver — 3.5 mm mini mono/stereo for external receivers.

  8. IR Flasher — 3.5 mm mini mono output to IR emitter.

  9. HDMI In/Out — HDMI output. HDMI input is not yet available.

  10. 10GbE Network port — Provides access to the network and Power-over-Ethernet (PoE).

    Caution: B-960 configurations must use an Araknis 920 switch. Read MoIP configuration for AN-920 Edge switches for more information.

  11. SPDIF In — SPDIF input.

  12. RS-232 — RJ45, RS-232, (TX, RX, Ground), EIA-561 pinout

  13. Network — Provides network access to a connected device.

  14. 3.5 mm Input — Analog audio embedding to replace HDMI audio.

  15. L/R Audio Out — RCA analog audio de-embedding of 2-channel PCM audio.
