Inputs/Outputs tab

Use this tab to configure the sources (inputs) and speakers (outputs).

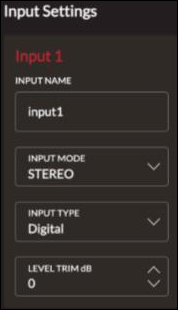

Input Settings

Input Name: Enter the name of the source.
Input Mode: Set the audio signal to Stereo or Mono.
- Stereo: The amplifier sends the stereo source's left channel to Output 1 and right channel to Output 2.
- Mono: The amplifier sums both sides of a stereo source to mono so both outputs play the same audio. This is recommended for 70V and landscape speaker systems.
Input Type: Set whether the input is an Analog or Digital source.
Level Trim dB: Use this field to adjust the volume of the input source. This does not affect gain.

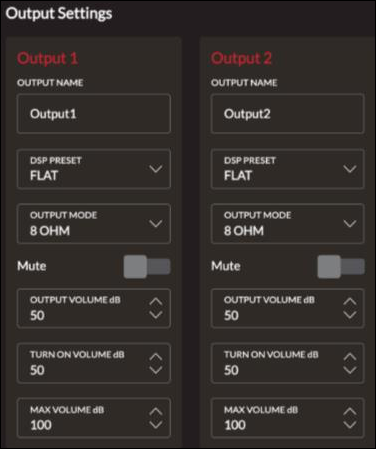

Output Name: Enter the name of the type of speakers attached to the Output. For example: sats, sub, surface mount, etc.
DSP Preset: Select a DSP Preset to use for the connected speakers. Each preset can be modified in the EQ Settings tab.
Output Mode: Select the type of speakers attached. 70V, 100V, or 8Ω.
Mute: Toggle Mute on or off. This setting is controllable with a control system. For example, when using Control4 select the amplifier as the volume endpoint of a Room in Composer Pro.
Output Volume dB: Set the volume for the output channel.
Turn on Volume dB: Set the output's volume level for the amplifier to use when it's initially powered on.
Max Volume dB: Set the maximum possible volume for the output. This keeps end users from turning the volume up too high when using the front panel's volume knob or a control system.
