Power options

When the amplifier is powered on, the power LED on the left side of the front panel illuminates solid blue. In Standby, the power LED turns off. Standby wattage is less than 0.5W.

Note: The EA-HYB-AMP-2D-2400 requires a 20A circuit.

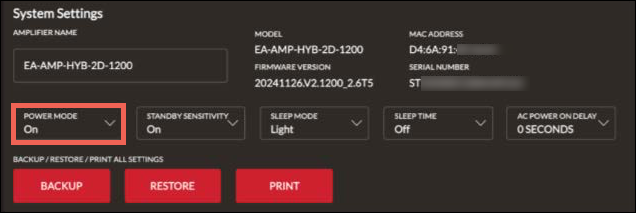

Set the power control method on the Configure tab in the web UI.

12V trigger

Episode Hybrid amplifiers are equipped with 12V DC trigger inputs and outputs for trigger control and daisy chain control for more than one amplifier.

Use a mono mini cable between the 12V trigger output of the controlling device and the TRIGGER IN port of the amplifier. Connect other devices to the TRIGGER OUT port on the amplifier using a mono-mini cable.

Specifications for the 3.5 mm (1/8") mono-mini cable:

There's a 4.5-15V constant signal during use.

Audio Sense

Audio Sense turns the amplifier on when an audio signal is detected. The amplifier enters standby mode if no signal is detected for 15 minutes. Enable Audio Sense through the web interface or front panel menu.

Deep vs. light sleep

Deep sleep puts the amplifier into a low-power state to conserve energy, while retaining the ability to quickly wake up. Deep sleep is required to meet EU standards for low power consumption when the amplifier is not in operation. It is not enabled by default.

Caution: Do not enable deep sleep if you're using IP control or remote management with the amplifier.
