Installation

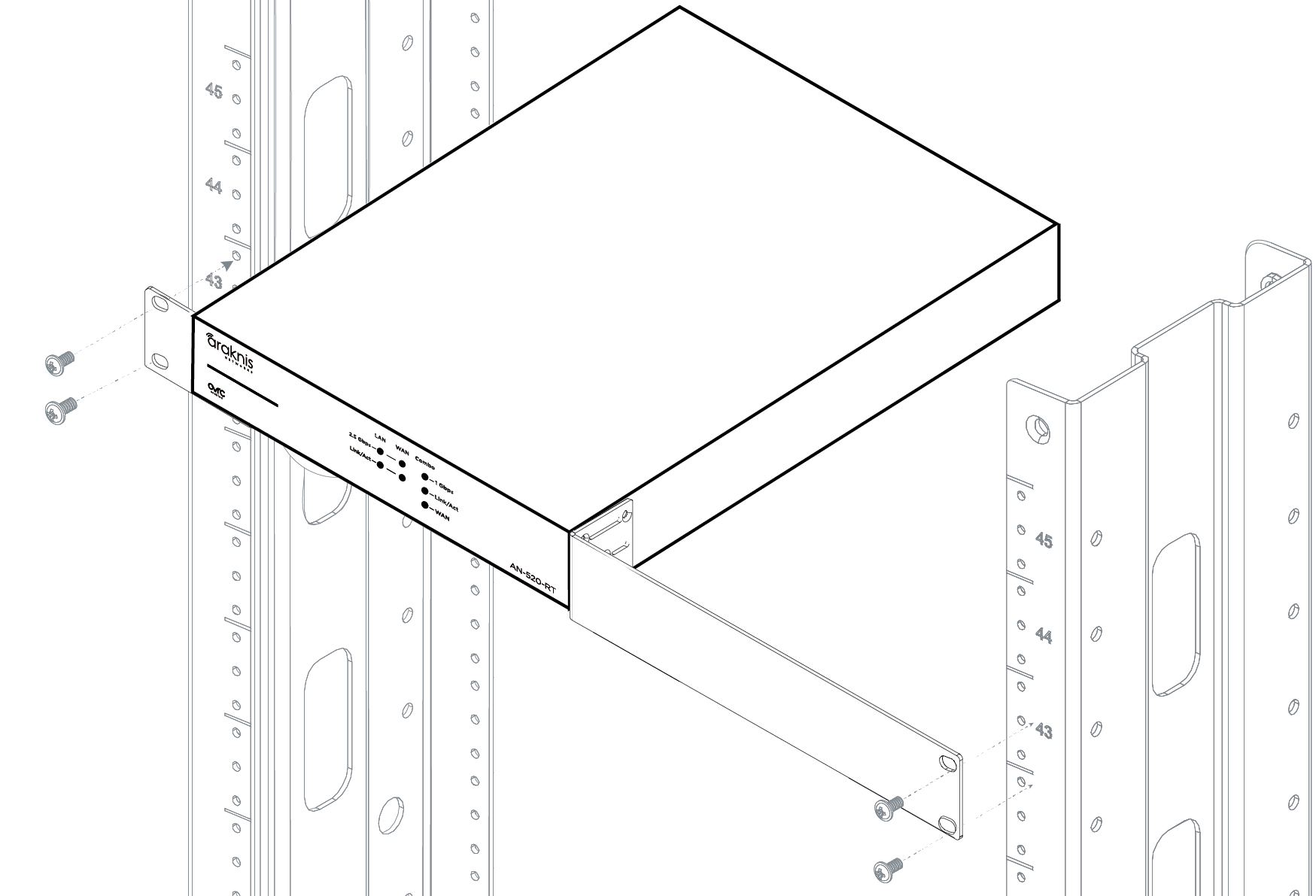

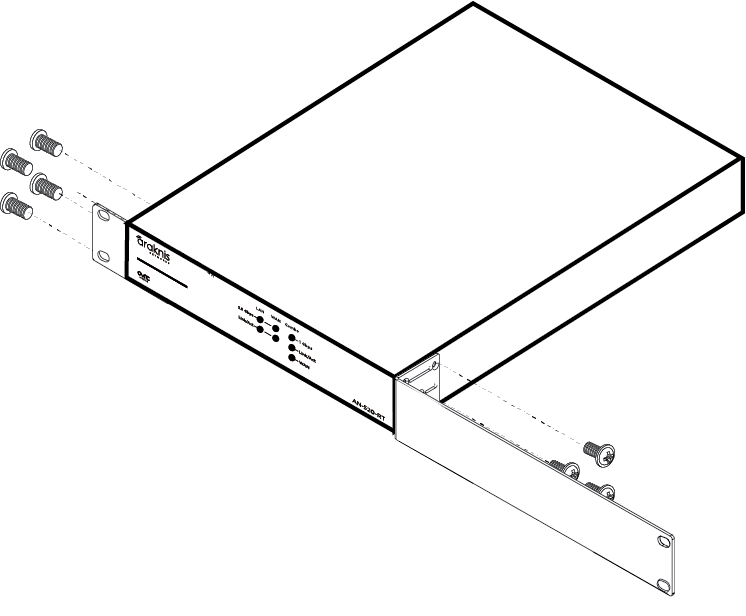

Rack mount

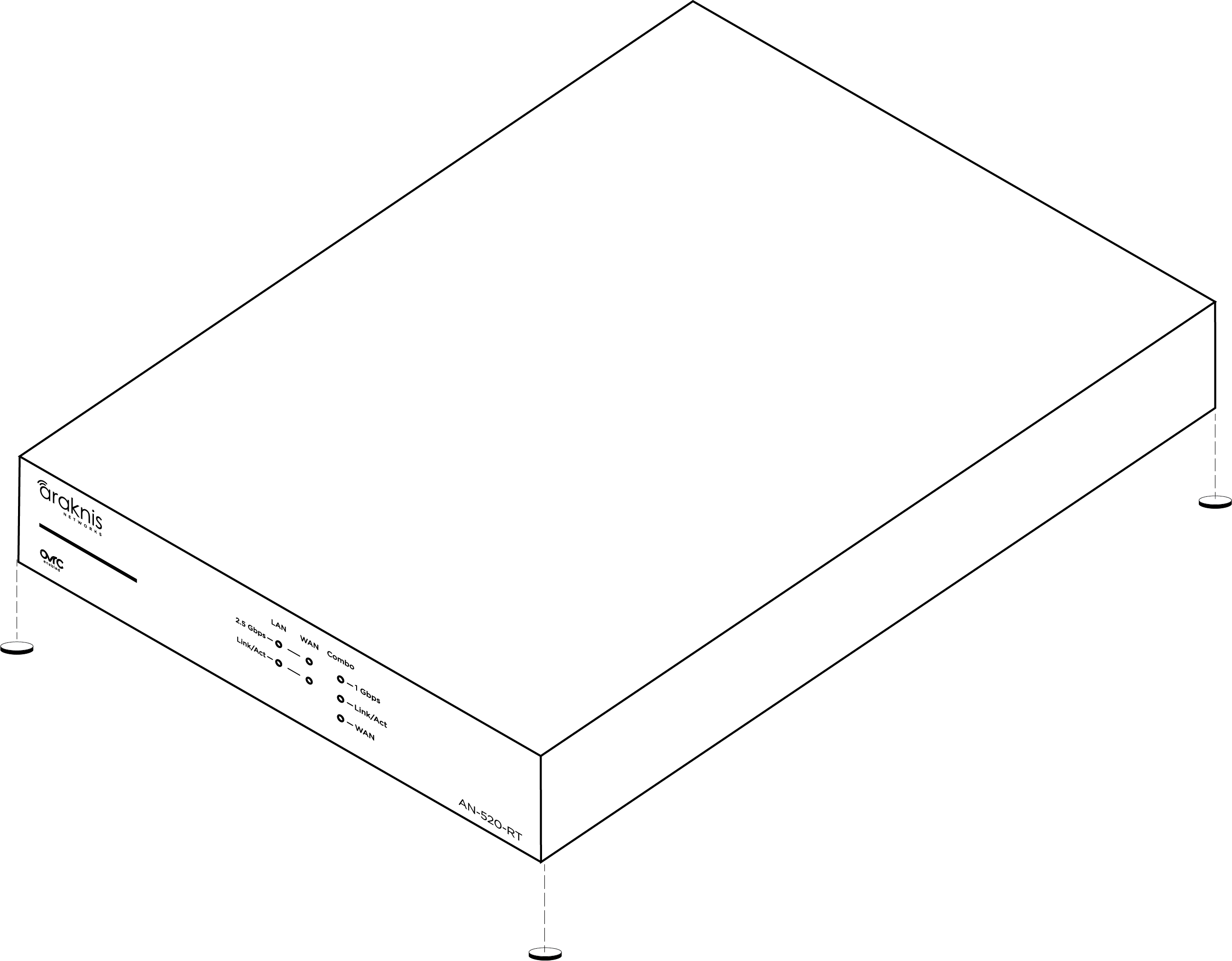

Shelf mount

Caution: Do not stack other equipment on top of the router to avoid possible interference or damage.

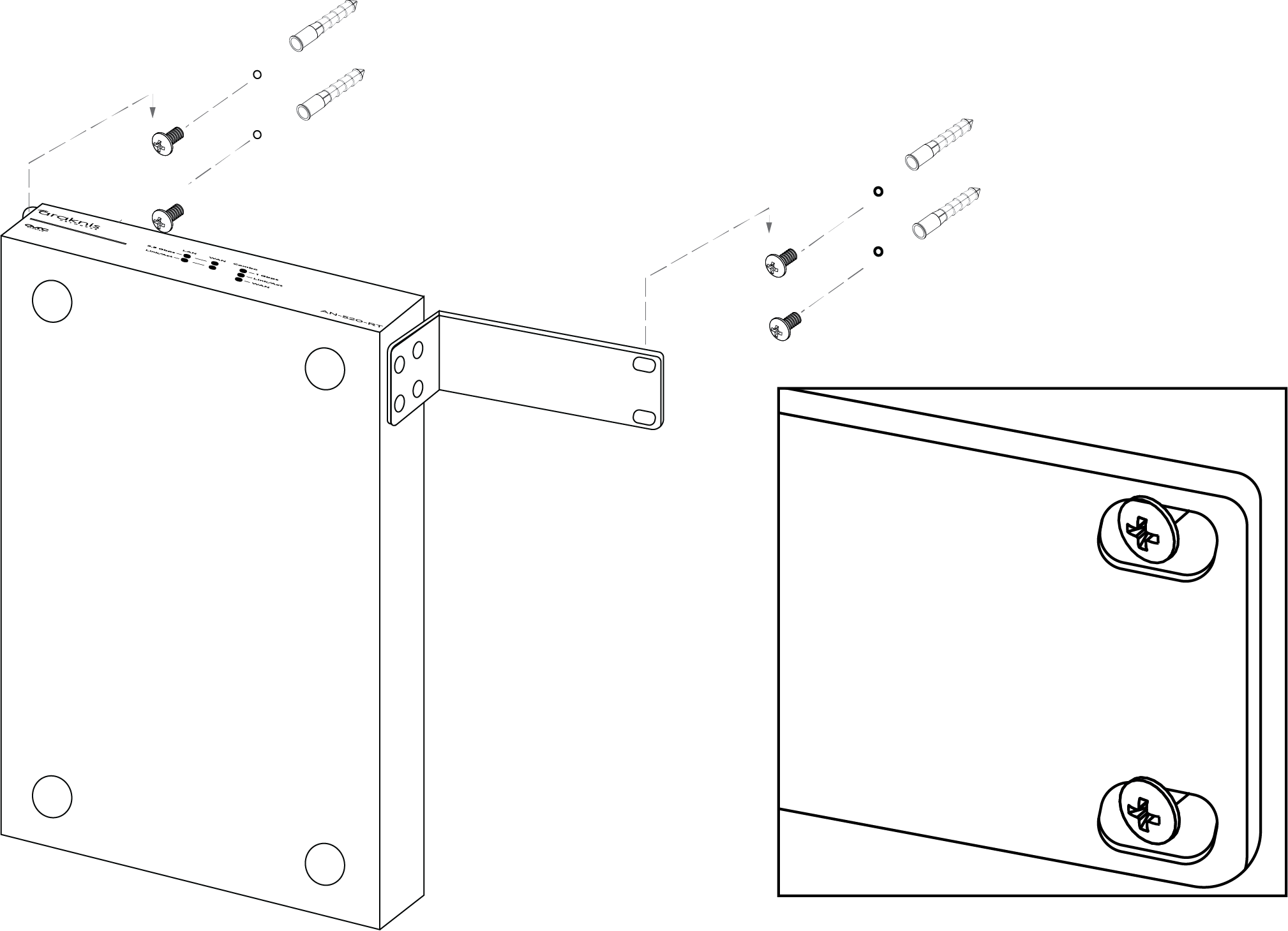

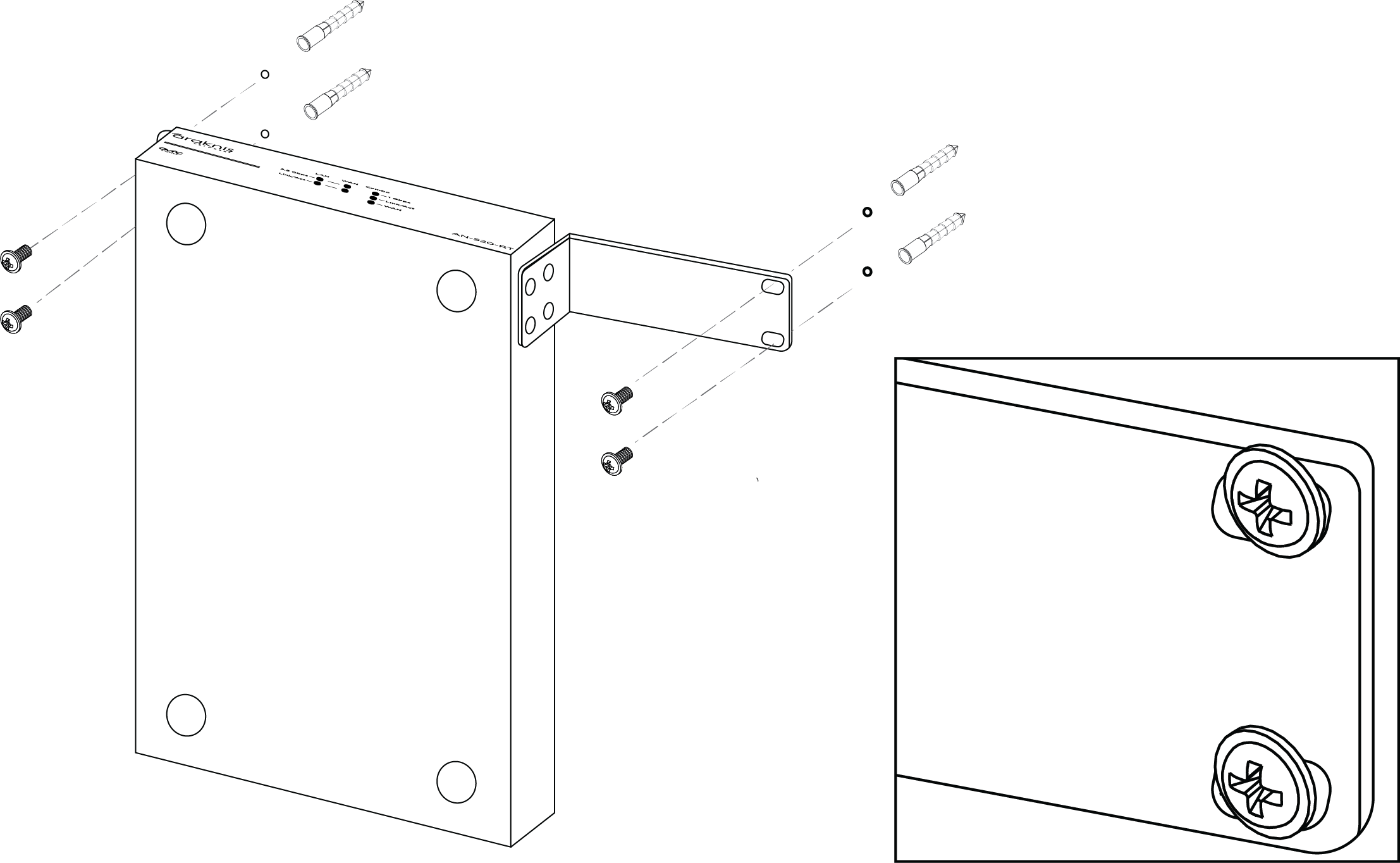

Wall mount

Use M4*L8 screws and wall anchors to attach the router's mount to the wall.

Use M3*L8 screws and wall anchors in the wall to hang the router's mount.
