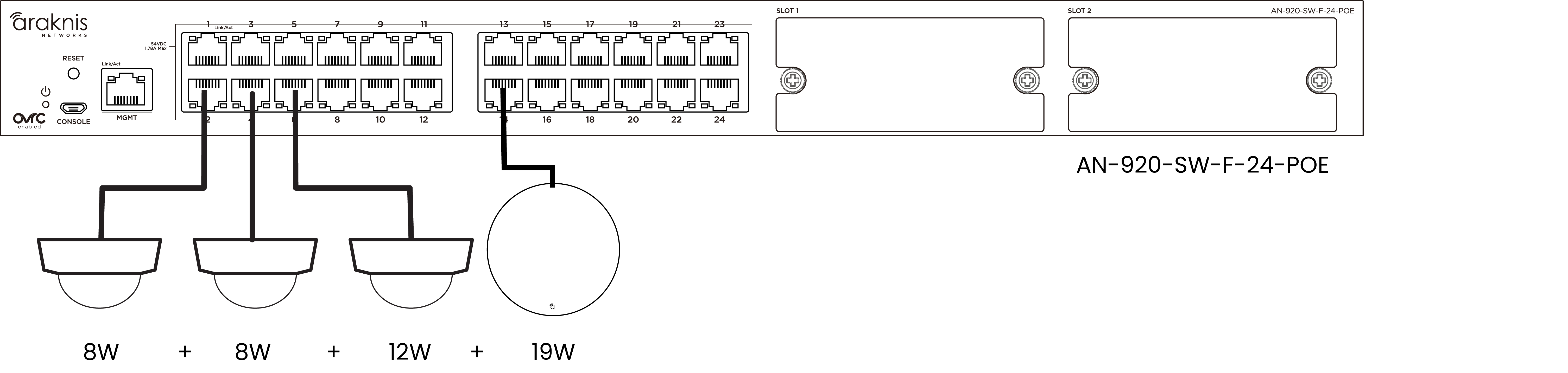

PoE budgeting
Total PoE device consumption = 47
|
Model |
Total PoE budget (Watts) |
Remaining PoE budget (Watts) |
|---|---|---|
|
AN-920-SW-R-12-POE |
750 with 1 power module |
703 |
|
1080 with 2 power modules |
1033 |
|
|
AN-920-SW-R-24-POE |
750 with 1 power module |
703 |
|
1650 with 2 power modules |
1603 |
