Installation

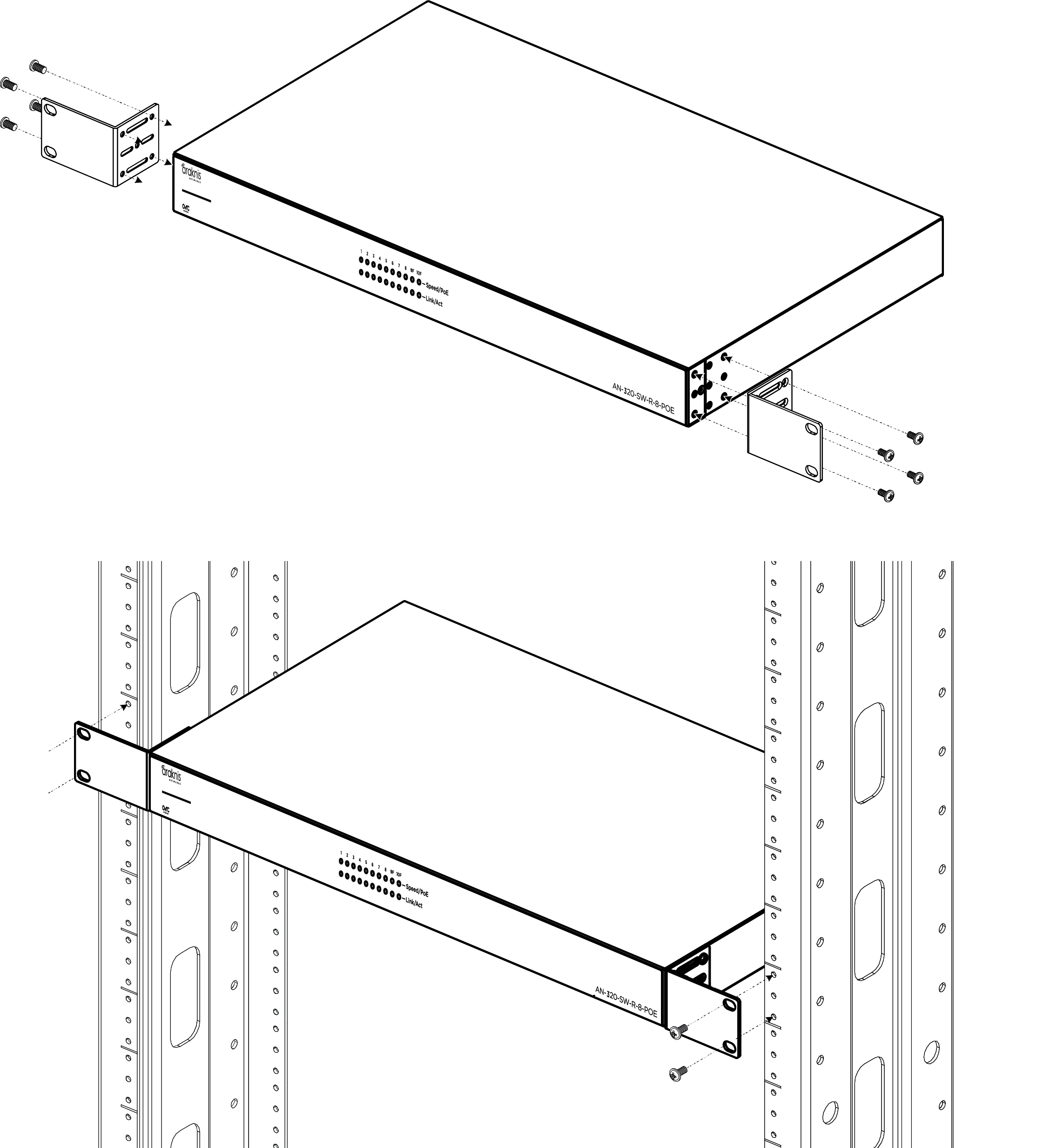

Rack mount

Wall mount

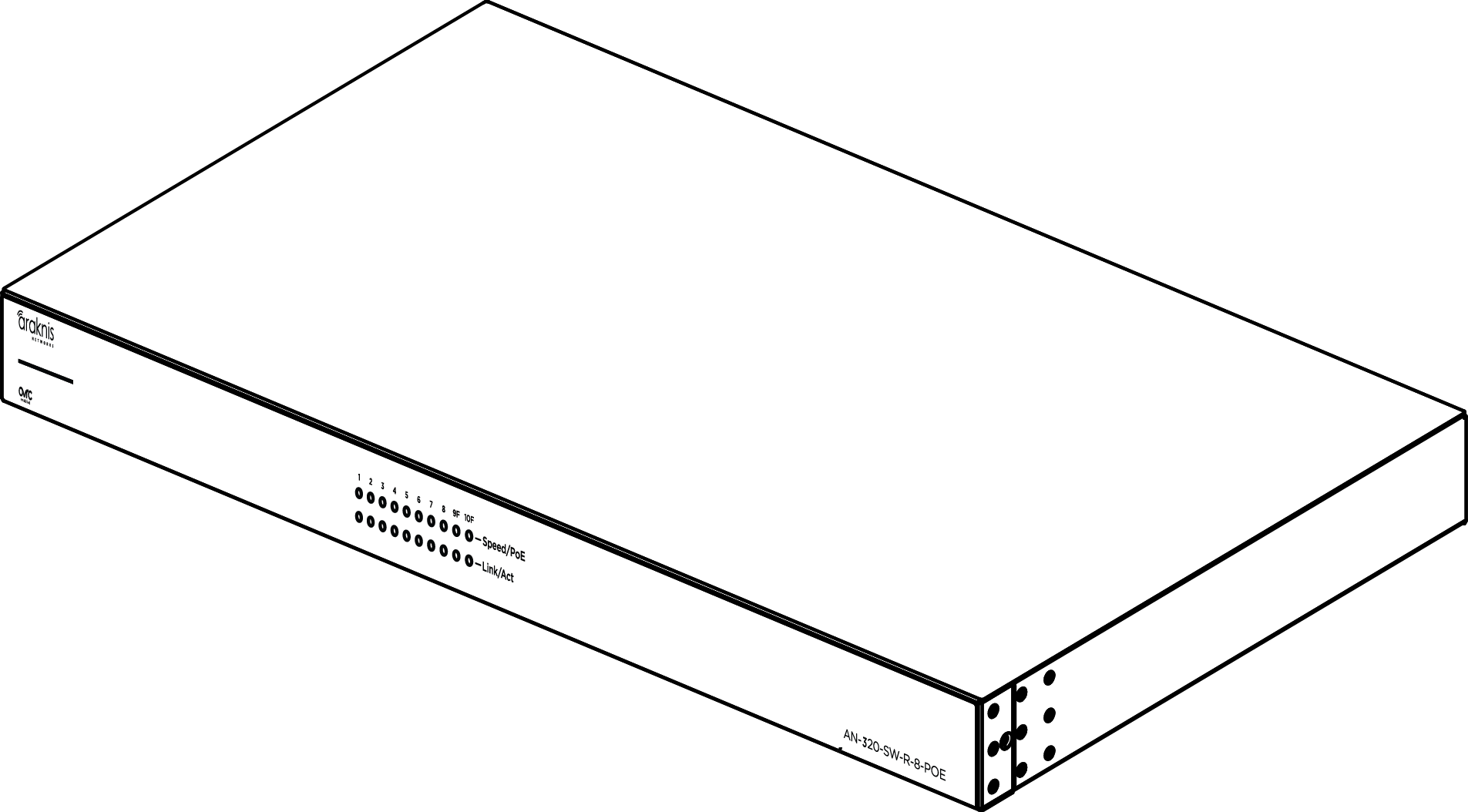

Shelf mount

Caution: To avoid possible interference or damage, do not stack equipment on top of the switch.

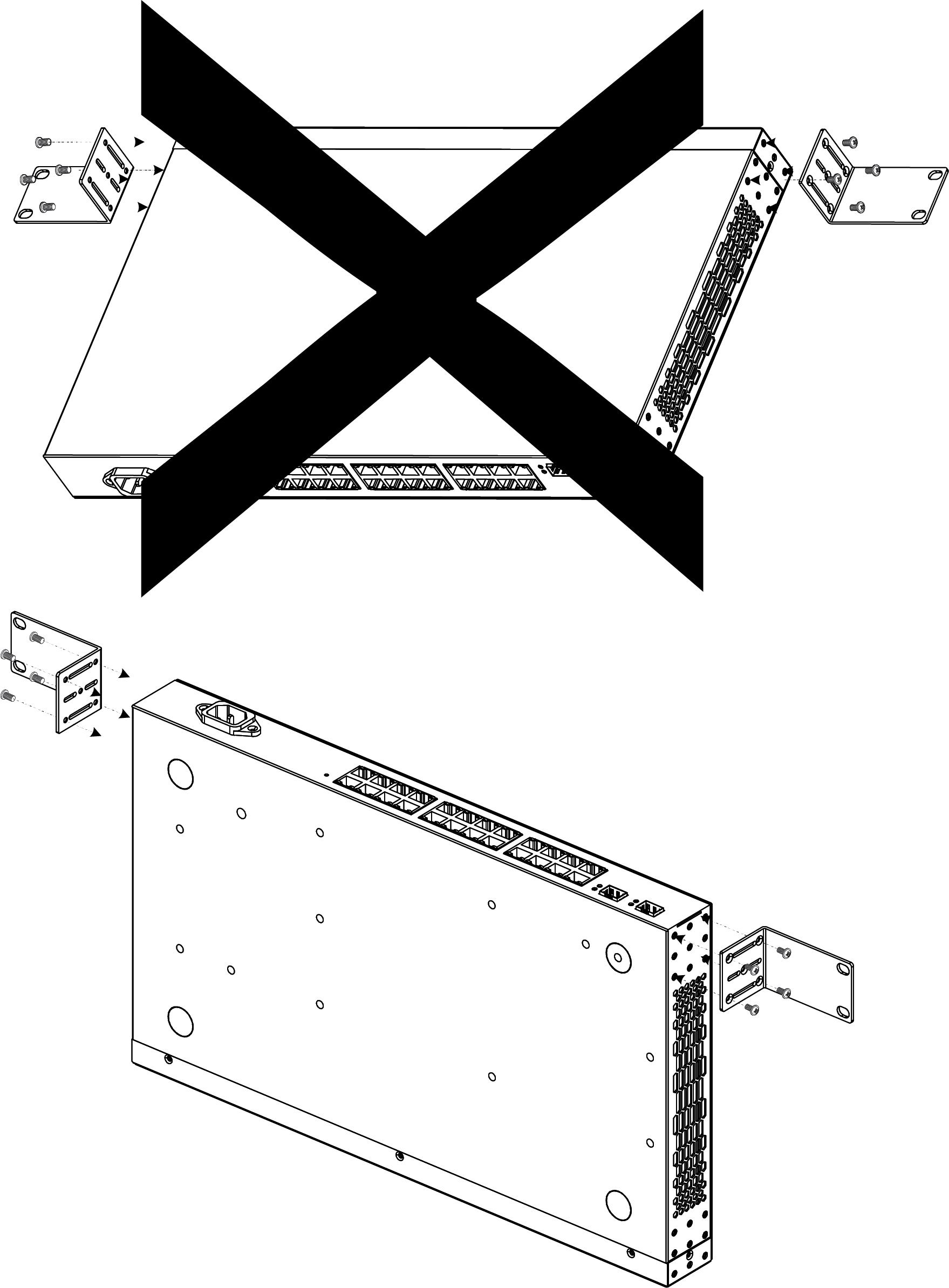

If wall mounting, the Ethernet ports must face the floor or ceiling. Wall mounting is not recommended for the AN-320-SW-F/R-POE and AN-320-SW-F-48.

Rack mounting guidelines

  • The maximum ambient temperature of the space the switch is installed in should not exceed 122 °F/50 °C.

  • Allow to air flow through the rack.

  • Verify all the leveling feet or casters are adjusted correctly and they come in contact with the supporting surface. Always load heavier equipment at the bottom of the rack.

  • Make sure the rack is grounded and the equipment is surge protected.

  • Do not overload the power equipment, or the switch. Check out our WattBox Best Practices for more information.
