Maintenance

Use this page to test and troubleshoot potential network issues.

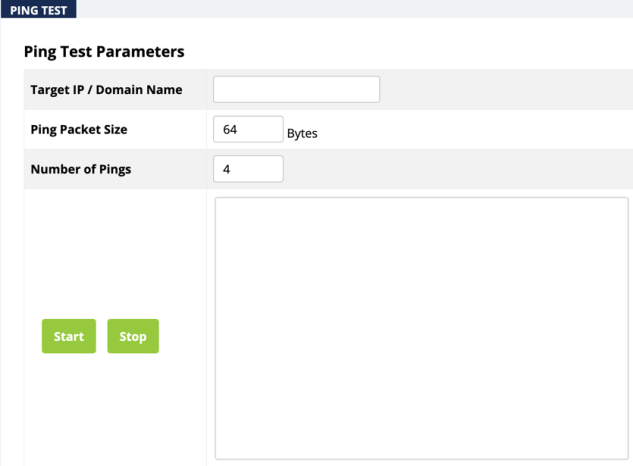

Ping Test

Use a ping test to determine whether a particular IP address can be reached.

Path: Maintenance > Ping

How to Run a Ping Test

1. Enter the Target IP address or Domain Name of the device or web page you want to communicate with.

2. Enter the Ping Packet Size for the test. The maximum size allowed is 65535 bytes.

   Default: 64 bytes.

3. Enter the Number of Pings you want the test to run.

   Default: 4

4. Click the Start button to start the test. Click Stop to manually end the test.

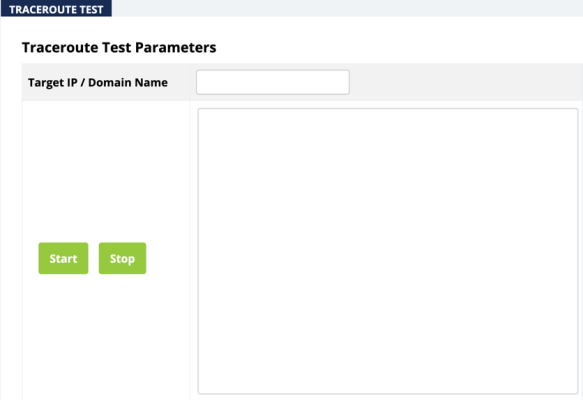

Traceroute Test

Traceroutes display the route and delay time for data packets to/from a destination on the network.

Path: Maintenance > Traceroute

How to Run a Traceroute Test

1. Enter the Target IP address or Domain Name of the device or web page that you want to see the network path used to communicate.

2. Click the Start button to see the test results in the text field on the right. You can click the Stop button to manually end the test.
