Network Scan & Internet Test Settings

OvrC Pro can run speed tests and network scans to keep your system healthy. With OvrC Pro running on various devices, it’s likely you'll have multiple devices capable of running these OvrC Pro services.

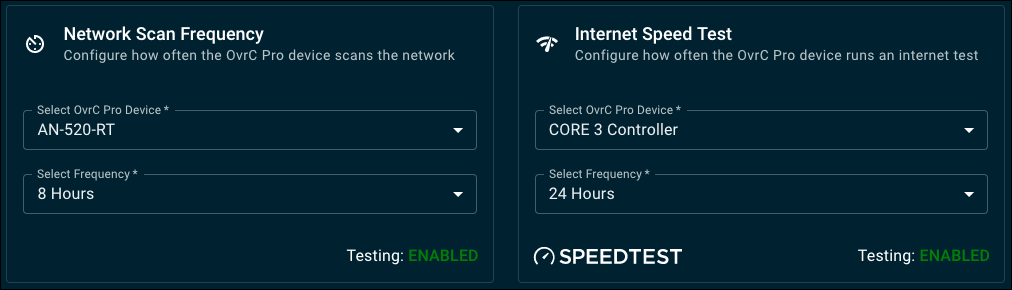

In each location's Site Settings tab, under OvrC Pro Settings, you can choose which device should perform each service and how frequently. This gives you the freedom to customize these services to each installation.

Network scanning

A network scan discovers new devices that have been connected to the network. If any are found, the scan also performs a check on OvrC Pro integrations like SNMP, ONVIF, or custom or specific integrations on devices like TVs or AVRs. Extending the frequency or disabling the network scan means that new devices will not be detected, and third-party integrations will not be updated, until another network scan is completed.

Which device should be used?

An OvrC-enabled router is best for running the network scan as it, by default, has visibility across all VLANs without any additional configuration needed within OvrC. If you do not have an OvrC Pro router, select a device that can be configured to span across any VLAN with devices you want to monitor. Typically, a core switch or other device that is connected directly to the router is the second best choice.

What frequency?

Use the default setting of 1 hour. A network scan introduces very little impact on network traffic. In addition, the short frequency provides the most accurate information when viewing device details.

Internet testing

An internet speed test determines the amount of bandwidth that is available from the Internet Service Provider (ISP). There are many variables in play, and all of those combined result in fluctuations between speed tests. These include:

• The device's available resources. Using a device that also manages other tasks like routing network traffic or maintaining wireless connections may not return the same results as a dedicated device like an OvrC Pro Hub.

• The server used. Different speed test servers return different results. OvrC chooses the speed test server with the fastest response time. This is typically the ISP's server.

How do speed tests work?

A speed test server provides a standard 1 GB file to download and upload. The test measures the time it takes to download the file, then to upload it again.

This is why you may see an OvrC Pro device using larger amounts of data than expected. If it's running frequent speed tests, it's sending and receiving 1 GB of data each time.

Which device should be used?

Select the device with the least number of tasks to provide the internet testing. Typically, the router is busy managing network traffic, so using a standalone OvrC Pro Hub or Control4 controller will likely give more consistent results. If the location has multiple controllers and/or a hub, select the device closest to the modem. Remember, you don’t have to run this command on a C4 controller.

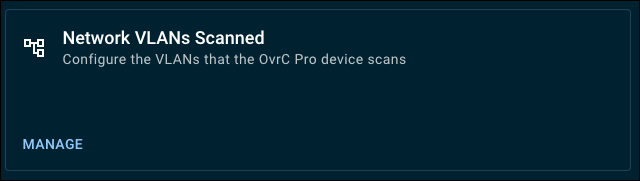

If you do not have an OvrC Pro-enabled router, you can connect a different OvrC Pro device to a switch or router port and manually add VLANs to scan.

What frequency?

Unless you have a strong need to monitor data speeds, we recommend daily tests to minimize the impact of the customer's internet use.
