AN-520-AP-O
Outdoor Wi-Fi 6 Access Points Installation Guide

Download a PDF copy

Welcome to Araknis Networks™

Thank you for choosing an Araknis Outdoor Wireless Access Point (AP). With sleek, unobtrusive housings, extensive features, unique easy setup, and convenient PoE power, these products are ideal for use in both residential and commercial applications.

Features

  • IP55 weather resistant

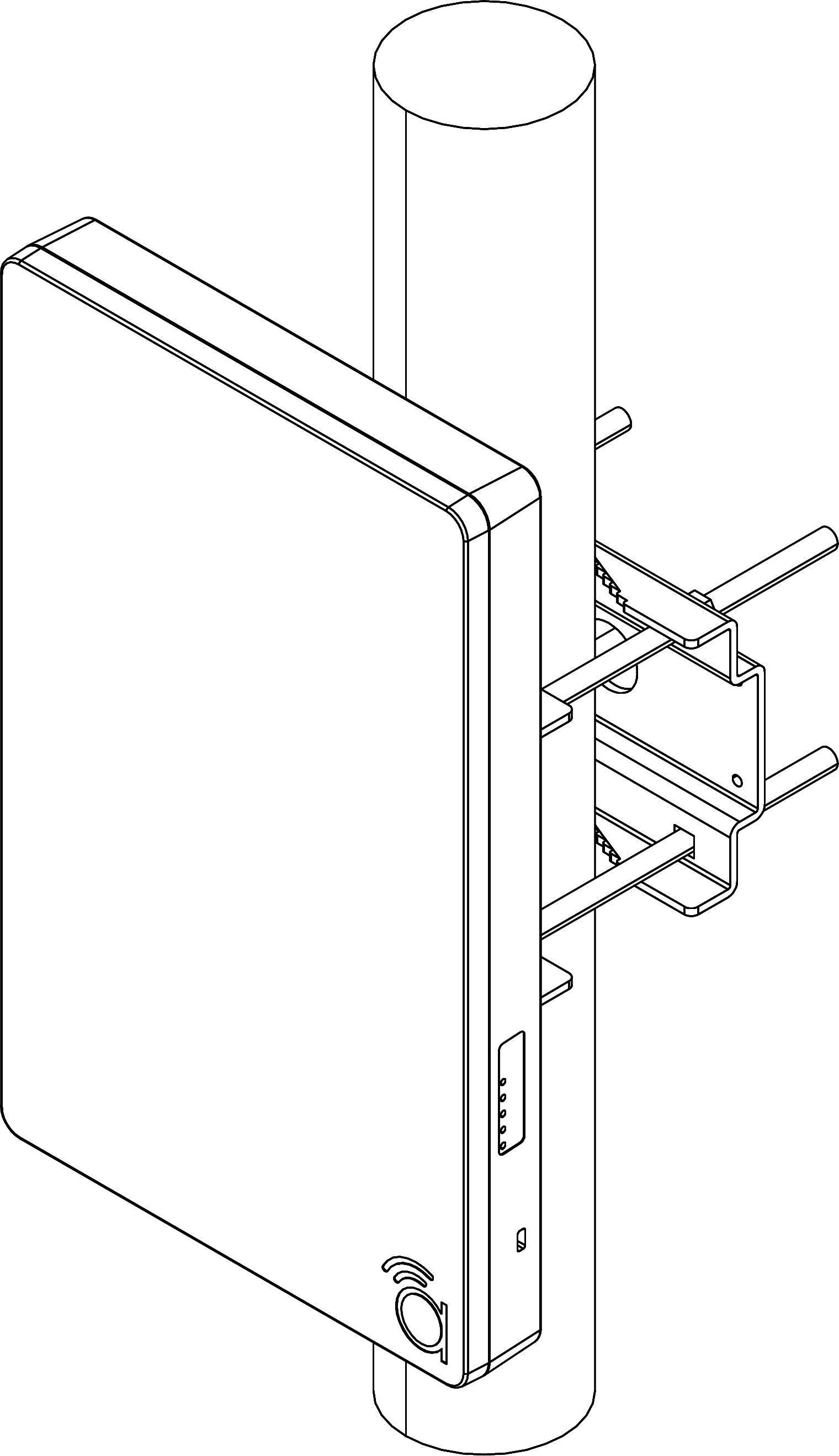

  • Versatile mounting

  • Bottom or rear cable entrance

  • Kensington lock hole for added security

  • 2×2 dual-band 802.11AX 3000Mbps

  • 1× 2.5 Gigabit PoE-in (no DC input)

    • IEEE 802.3at PoE+ (30W) required for power

  • 1× 1 Gigabit LAN port out for data and PoE (15W)

    • IEEE 802.3bt PoE++ is required to pass PoE out

  • OvrC enabled

Caution: Install with the ports facing downward to avoid water collecting in the ports.
