Bracket Mounting

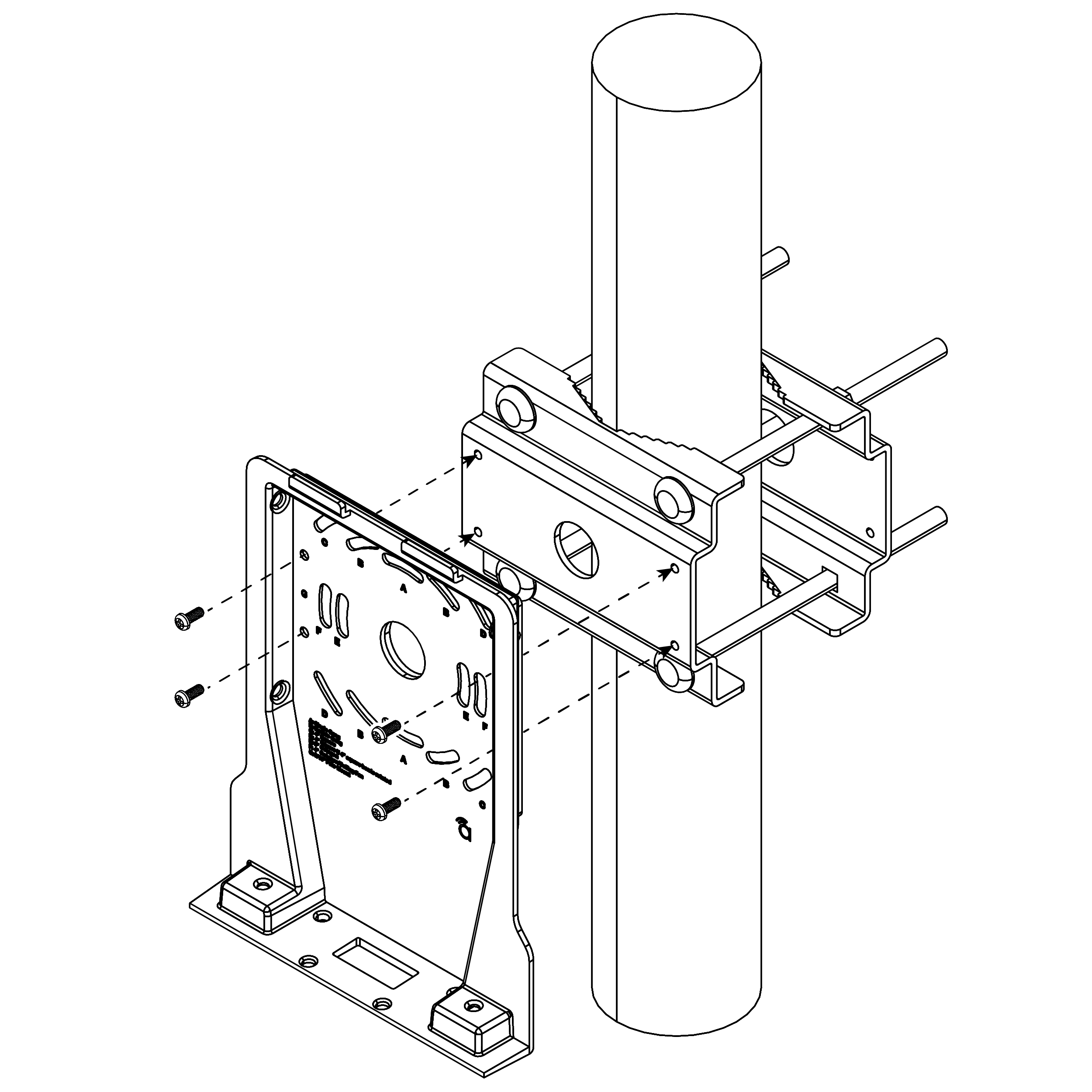

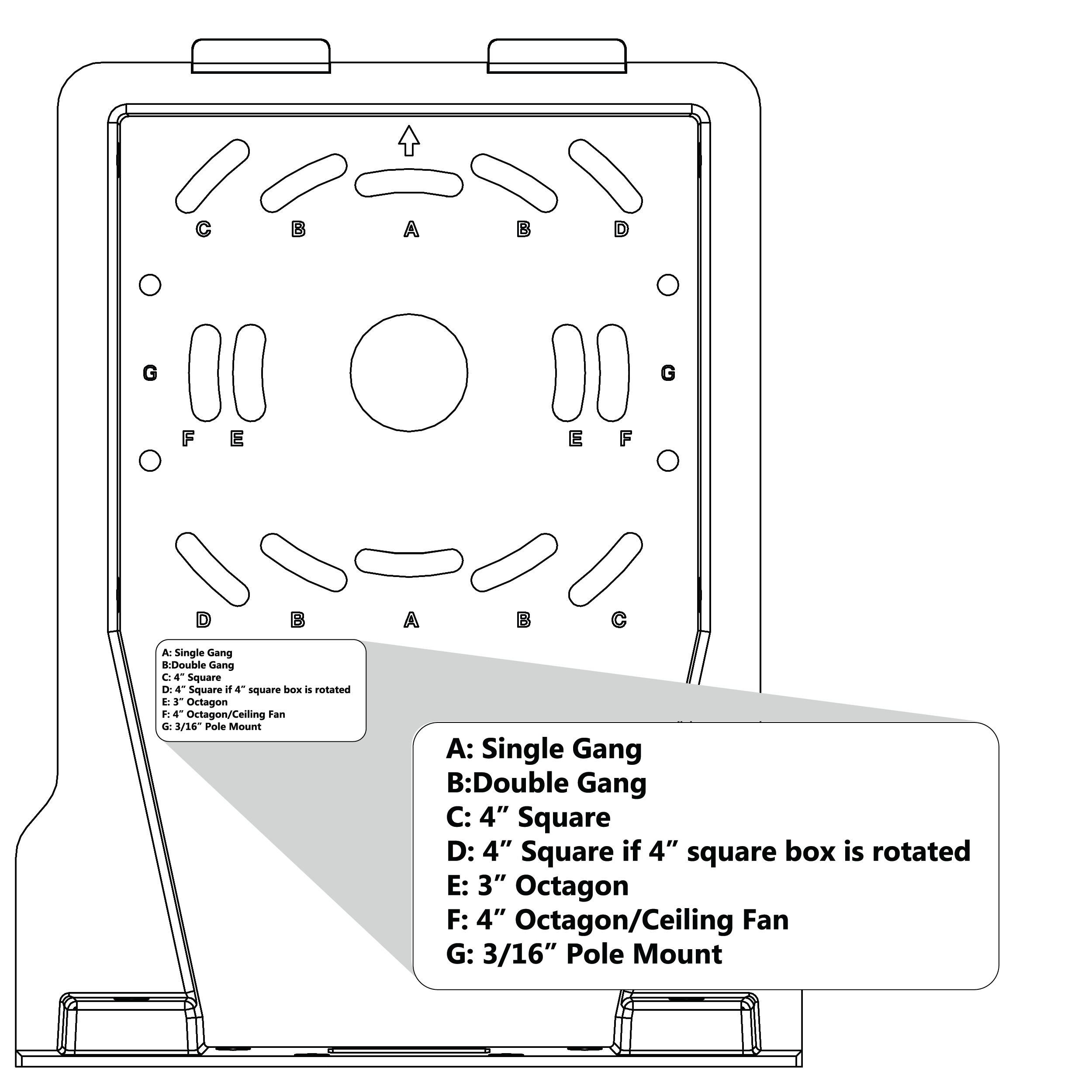

Pole mounting shown for reference. For surface mounting, fasten to the surface using the included screws and anchors.

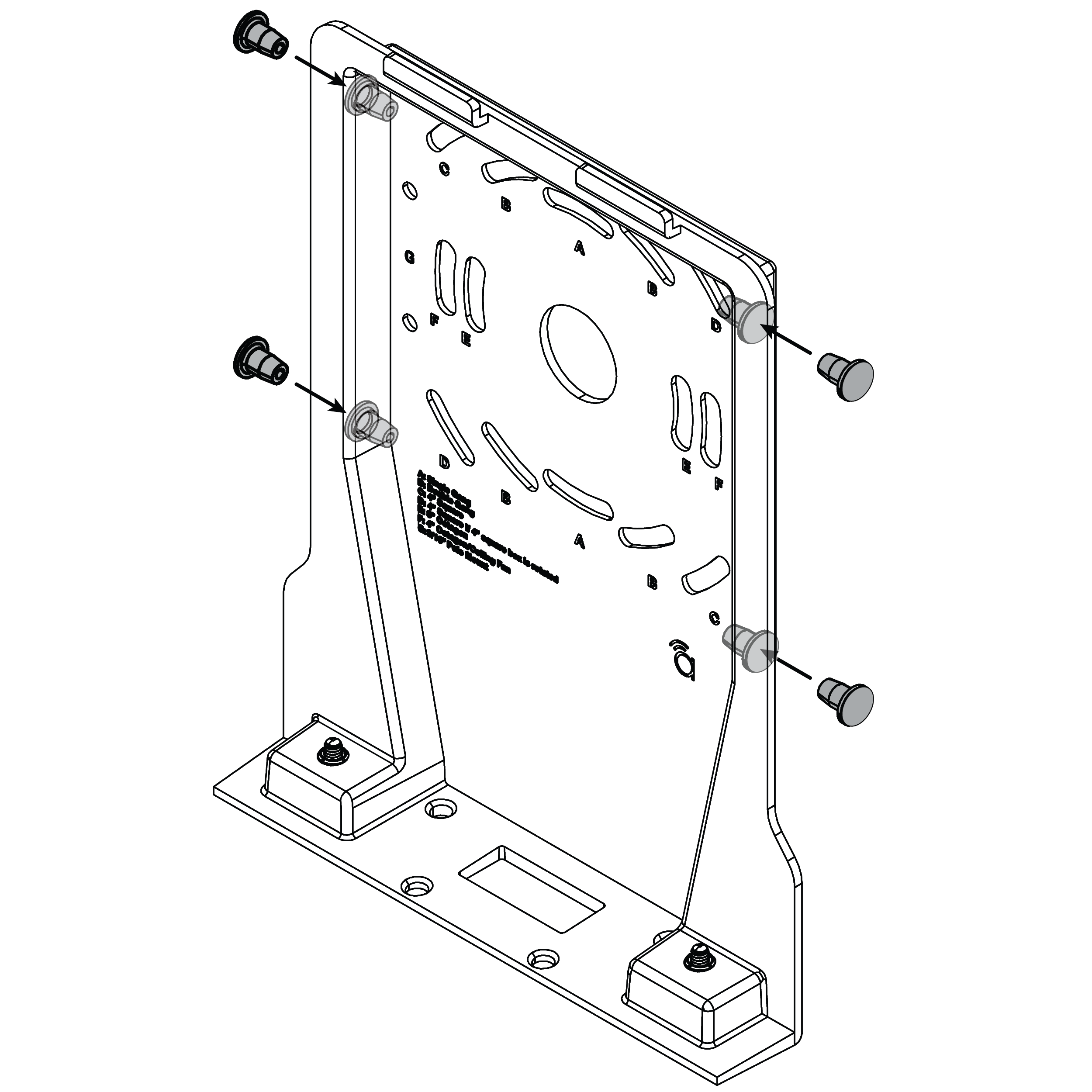

The weep hole plugs must be installed correctly.

Leave the bottom weep holes open for drainage.

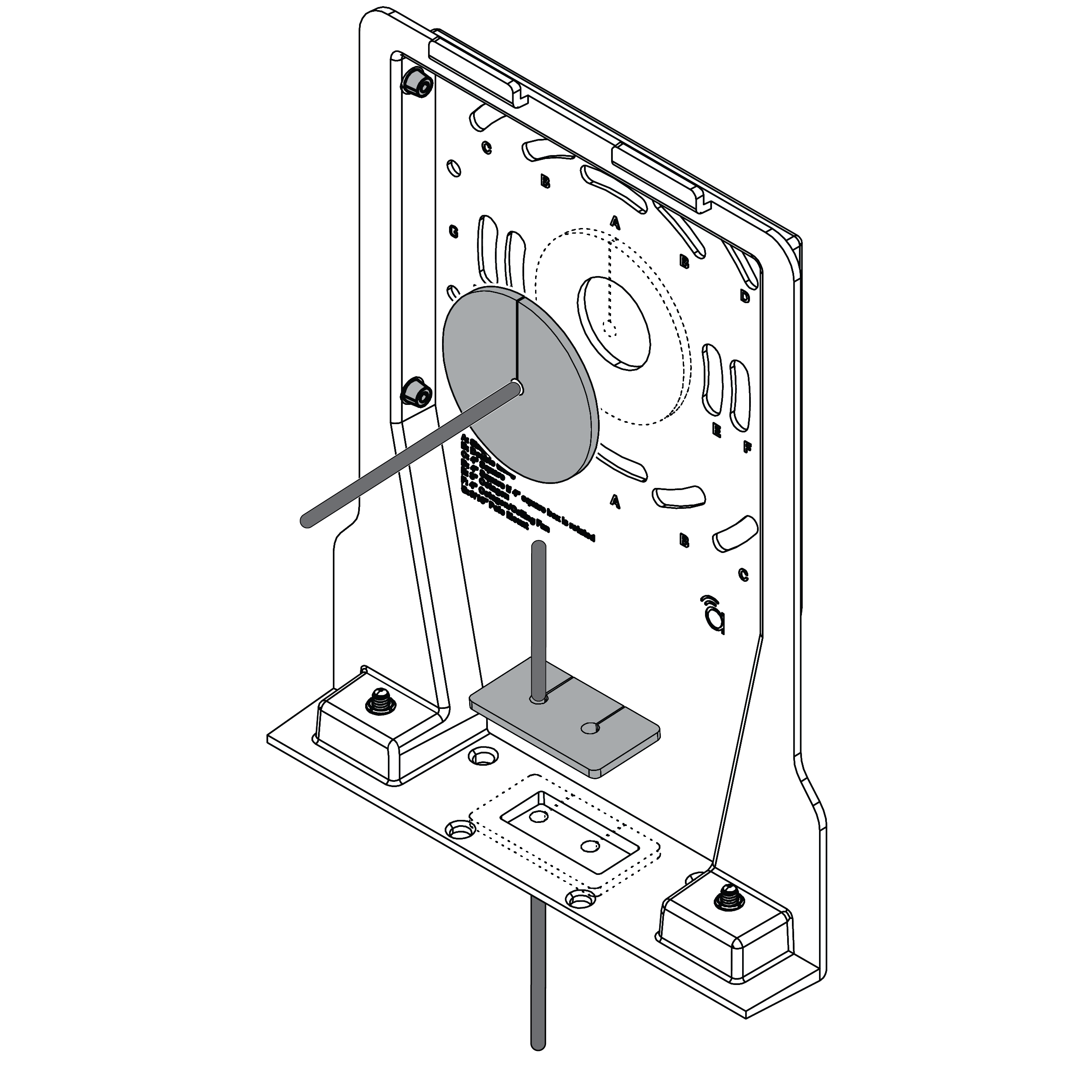

Pull the cables through before installing the foam pieces to avoid tearing the foam.

Caution: Use gaskets that best fit the cable diameter.

To ensure weatherproofing, insert the gasket even if the cable entrance is not used.
