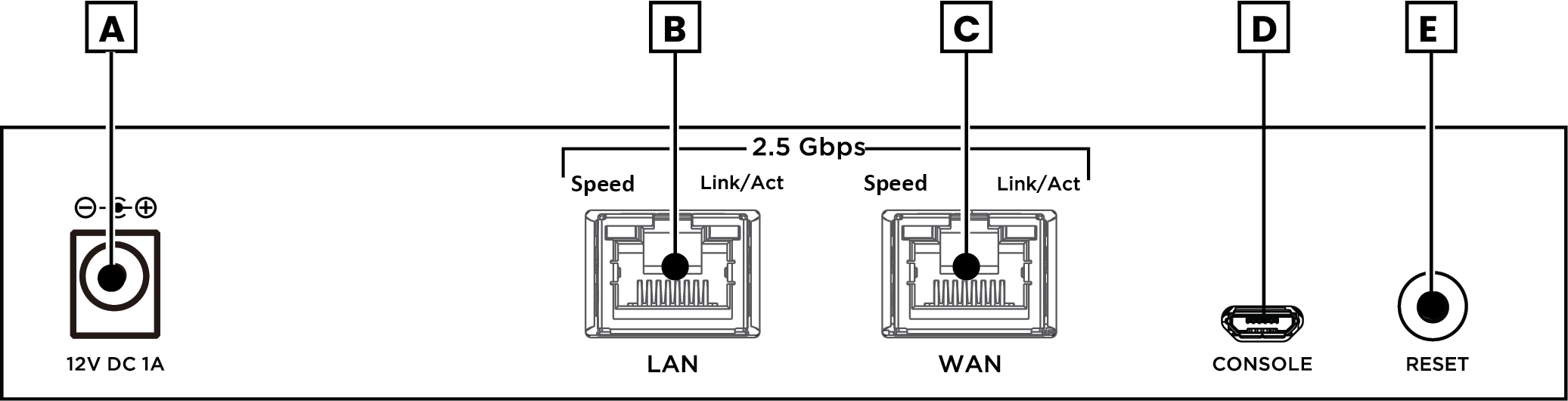

Connections

Caution: Power off all other network devices before connecting the router.

1. Power input — Connect the supplied power cable.

2. LAN port — Connect a client device such as a network switch, computer, etc.

3. WAN port — Connect the internet gateway (modem).

4. Console port — Not currently in use.

5. Reset button — Refer to LEDs & reset procedures.

Connect the included power supply to the router after making all other network connections.
